650nm 100mw Single mode fiber coupled 빨간색 laser module with FC interface

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


650nm 100mw Single mode fiber coupled 빨간색 laser module with FC interface

Specifications:
Output wavelength: 650nm
Core power: 100MW
Exit pupil power: About 30MW, the power is about 10MW after connect the optical fiber
Operating voltage: DC 2.8V~3.2V
Working current: 200mA
Optical lens: optical coating glass lens (import)

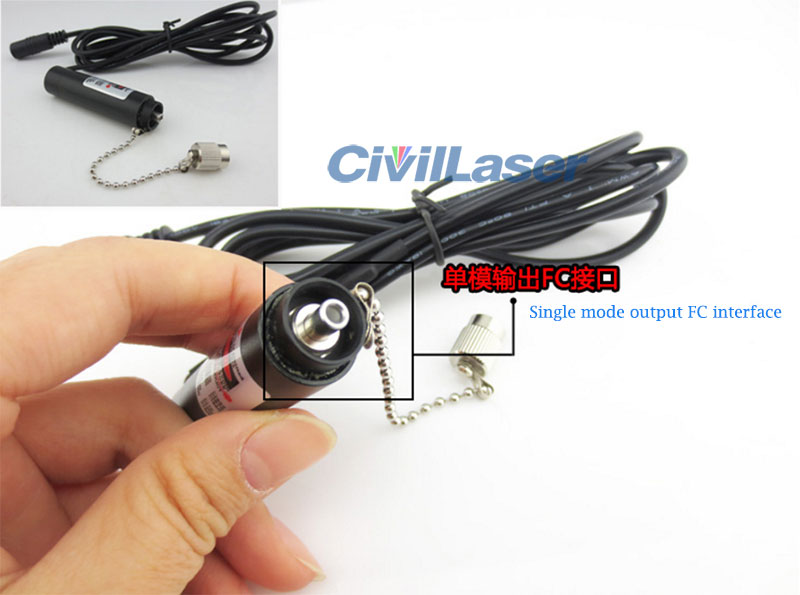

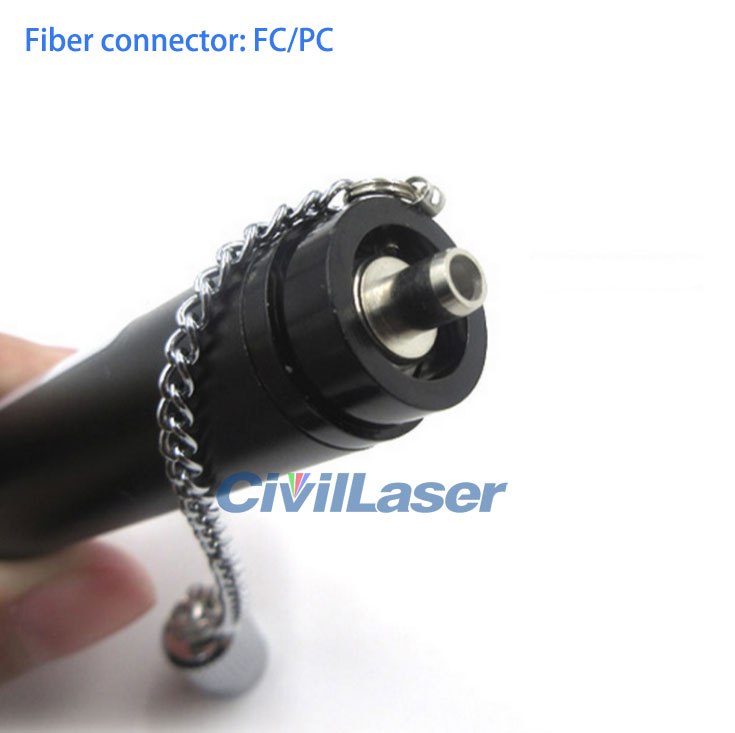

Fiber interface: FC/PC
섬유 길이: 3meters
섬유 유형: single mode fiber

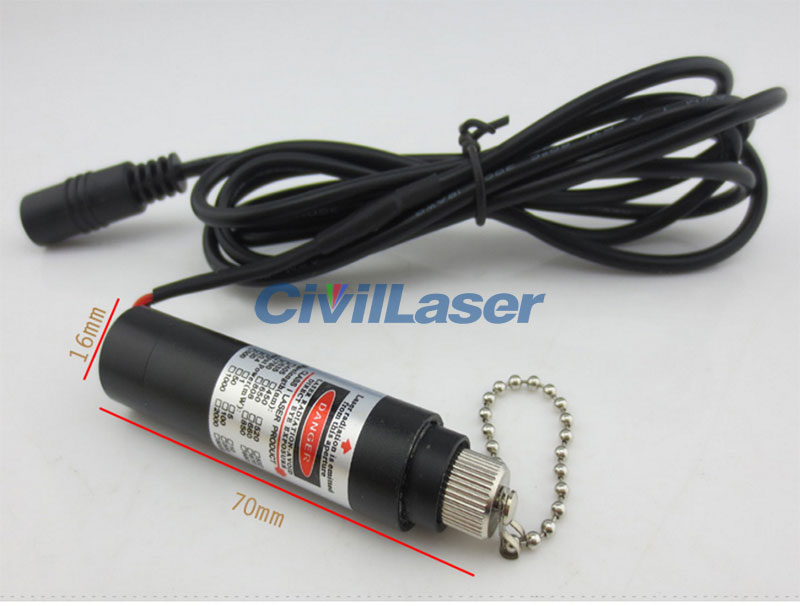

Dimensions: 16*70mm
Operating temperature: -10°C ~ 50°C
Storage temperature: -40°C ~ 85°C

Advantage:
1, The laser almost no temperature after optical fiber jumper, it is similar to cold light source, more safe and more stable performance;
2, The fiber because of its flexibility can make the laser emitting end of flexible, mobile use and more convenient;

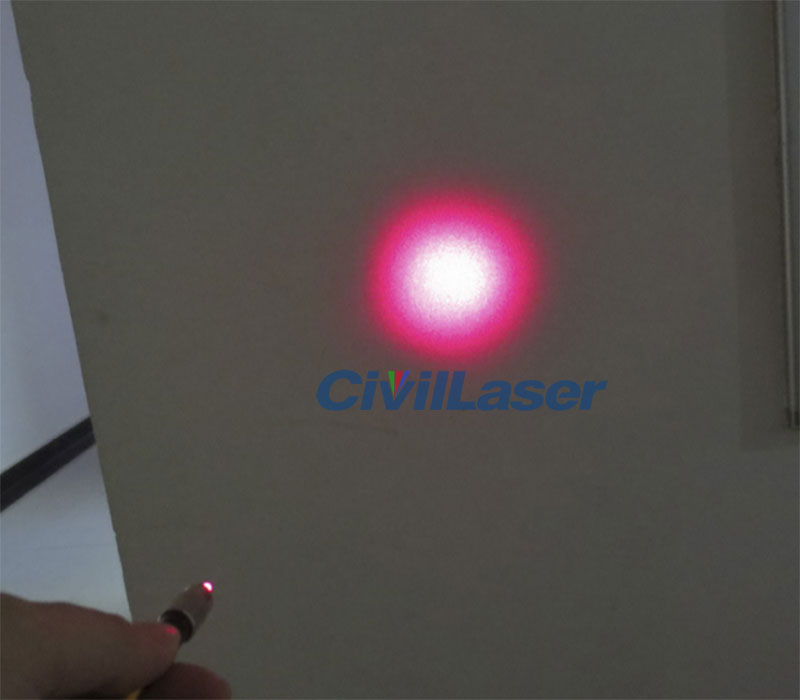

3, We can make better mode of laser beam shaping, beam is Gauss distribution;
4, It can be used in laser beam integration to improve output power;
5, The 1-3V with adjustable power supply can control the laser intensity.

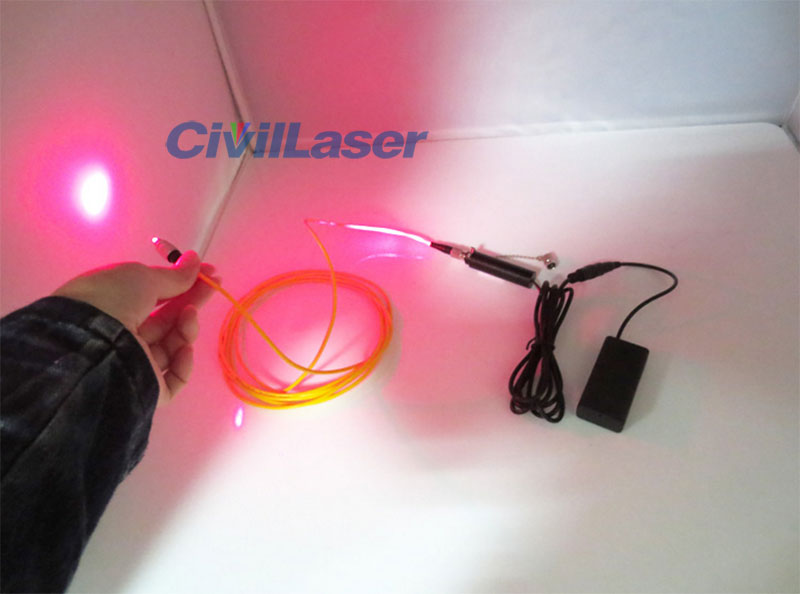

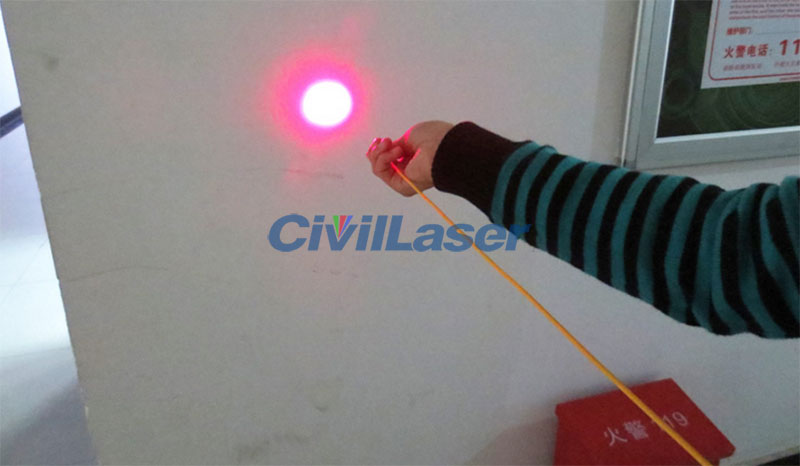

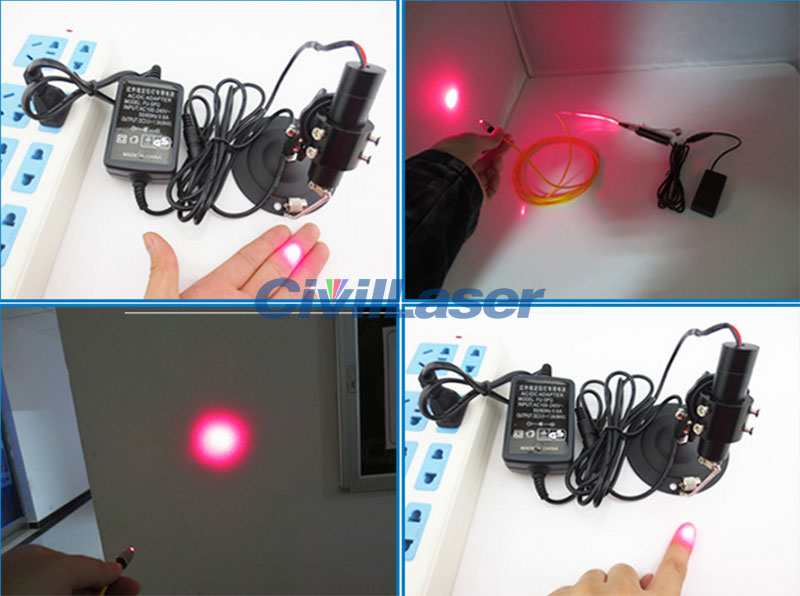

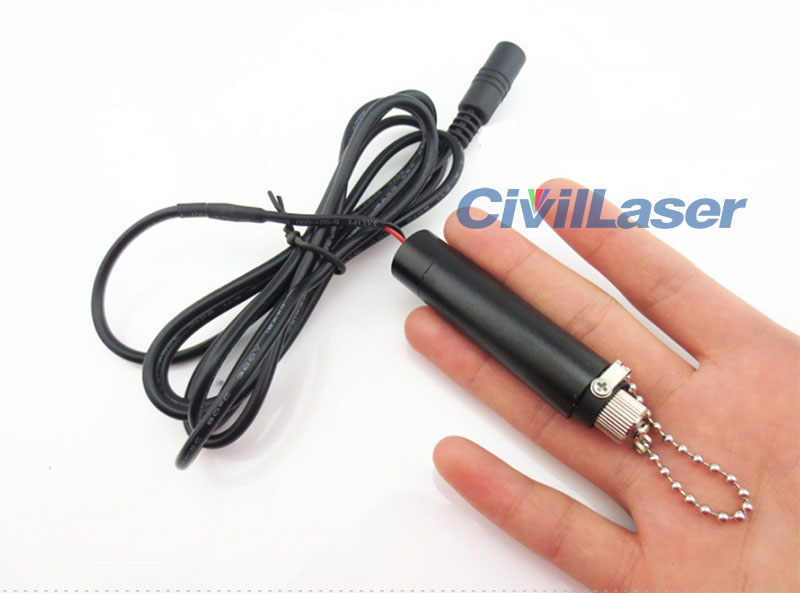

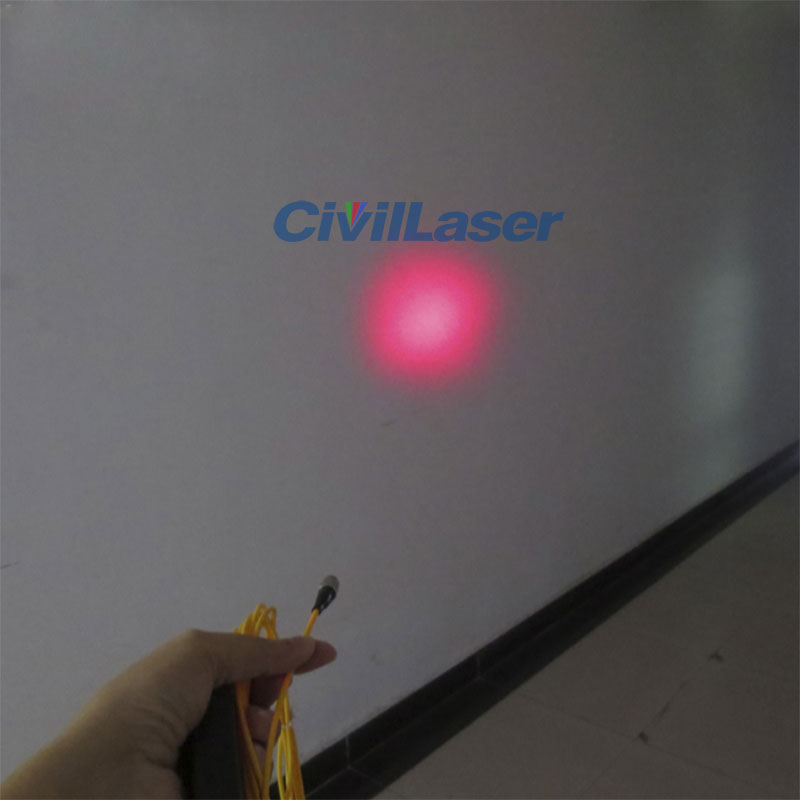

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module

650nm 100mw Single mode fiber coupled 빨간색 laser module
