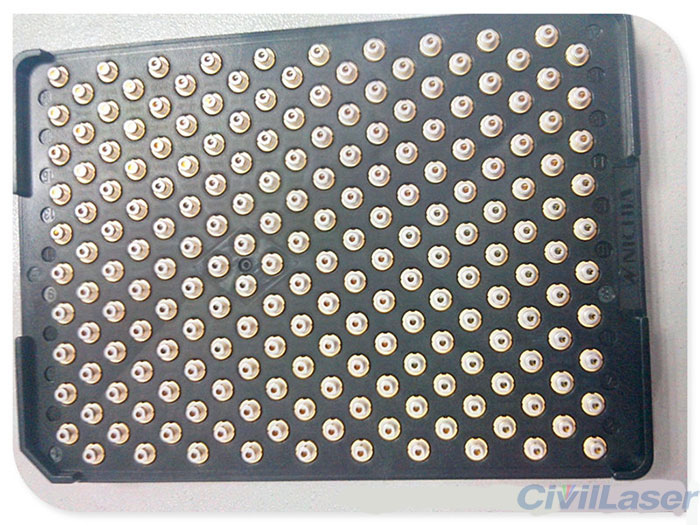

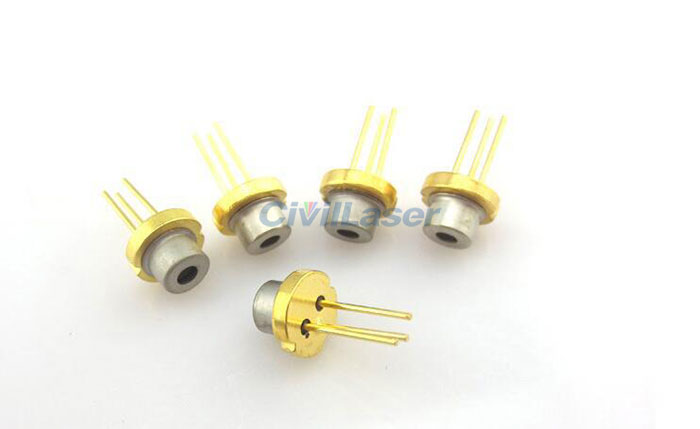

OSRAM 520nm 30mw PTL5 520 녹색 레이저 다이오드 TO56

OSRAM 520nm 30mw PTL5 520 녹색 레이저 다이오드 TO56

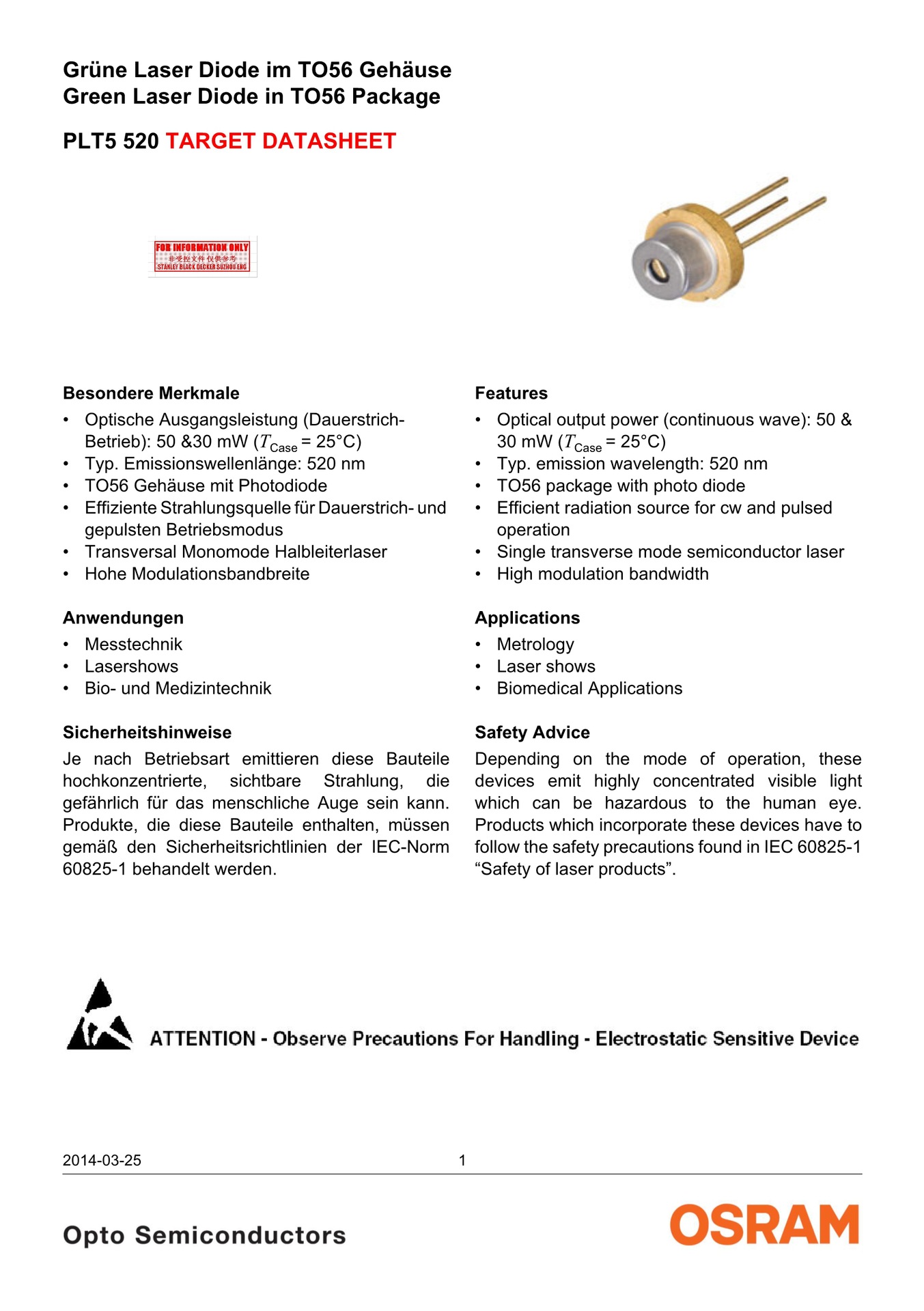

[특징]
Optical output power (continuous wave):50 & 30mW(Tcase=25℃)
Typical emission wavelength:520nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth

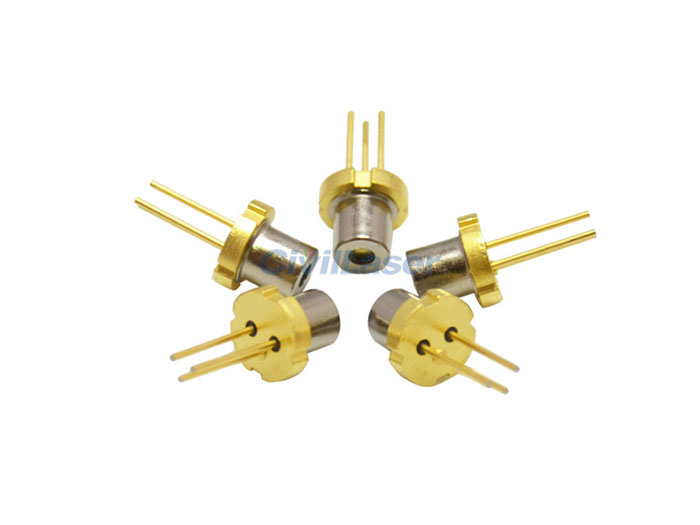

TO56 package with photo diode

[명세서]
Type:PLT5 520
출력 파장:520nm
출력 파워:30mW

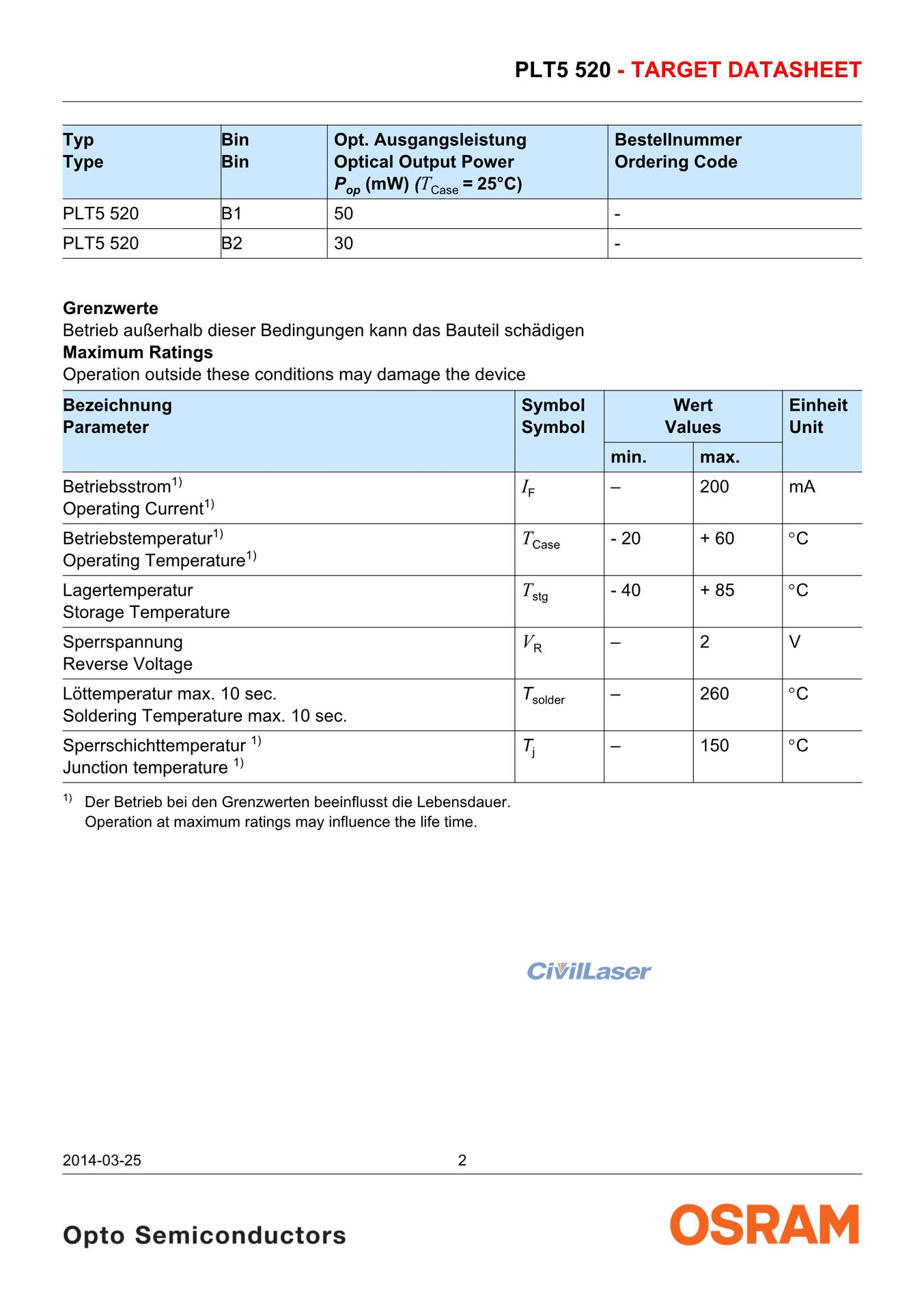

Operating Current (Tm=25℃): 200mA
보관 온도:-40~85℃
Operating Case Temperature: -20~60℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction  Temperature:150℃

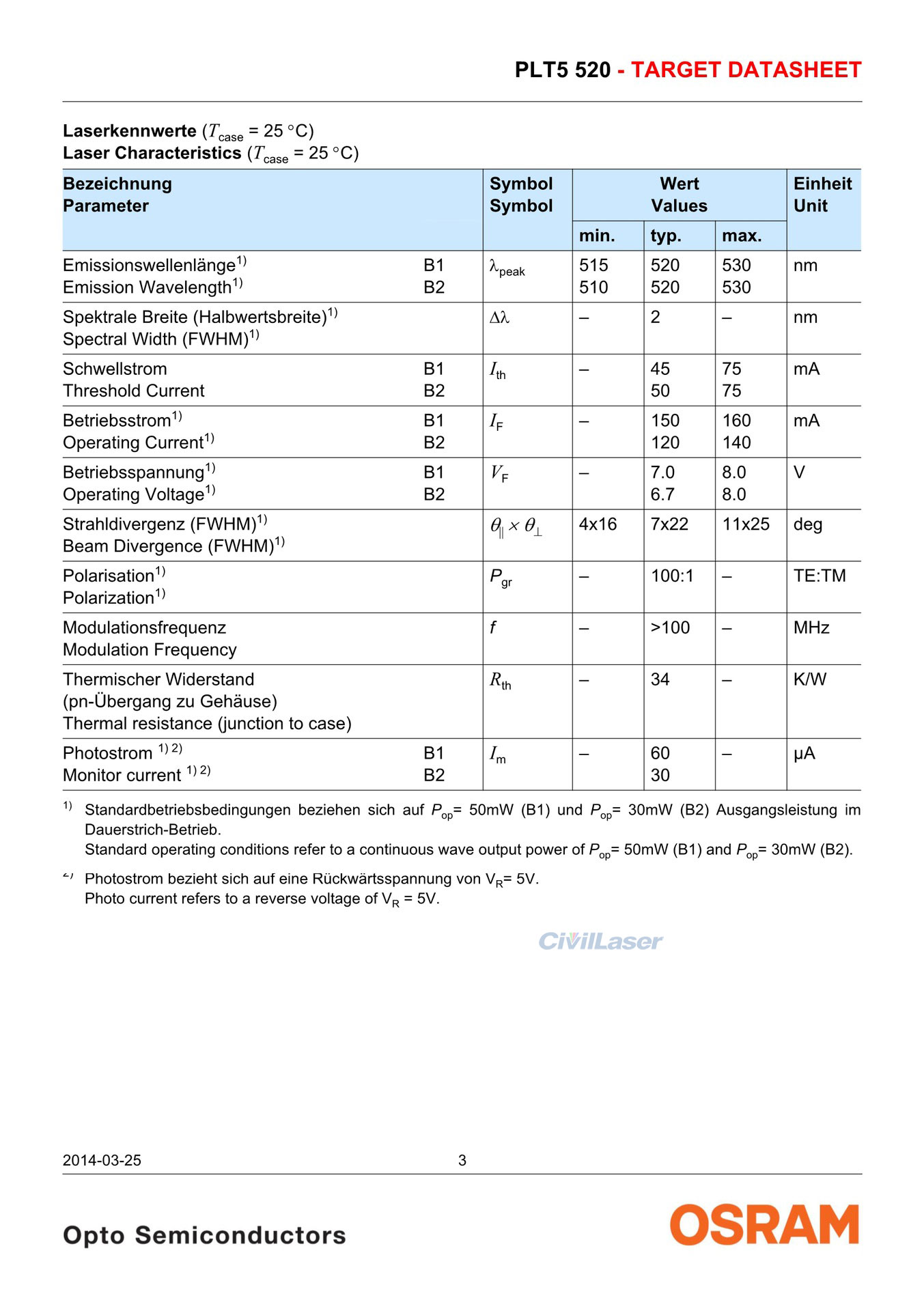

Emission Wavelwngth:510nm-530nm
Spectral Width:2nm
Threshold Current:50-75mA
Opreating Current:120-140mA
작동 전압:6.7-8.0V
Beam Divergence :4*16 deg-11*25 deg
Modulation Frequency:>100MHz
