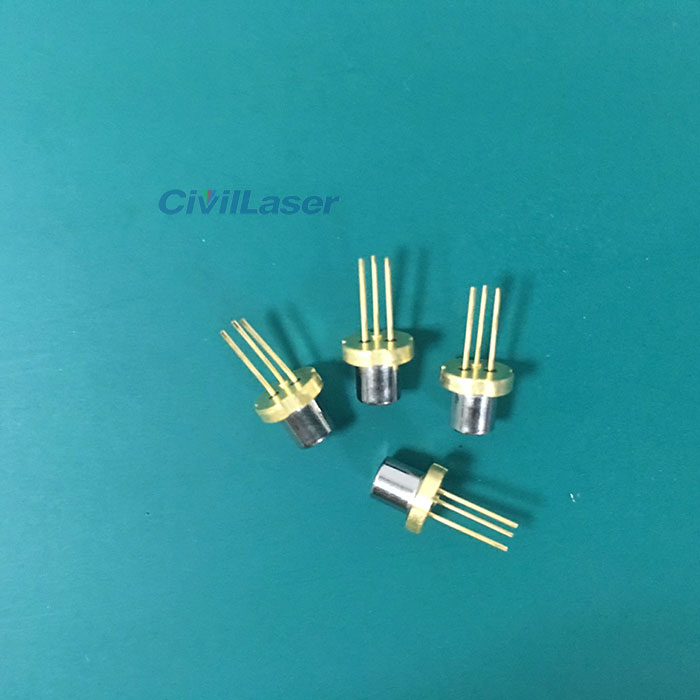

Nichia NDV4642VFR 405nm 300mW Blue Violet 레이저 다이오드 TO 3.8
메모:
This laser diode(Nichia NDV4642VFR 405nm 300mW)is out of production.
Only secondhand LD are in stock.($39/pcs second-hand NDV4642VFR LD.)
[특징]
Optical 출력 파워: 250mW CW Pulse 500

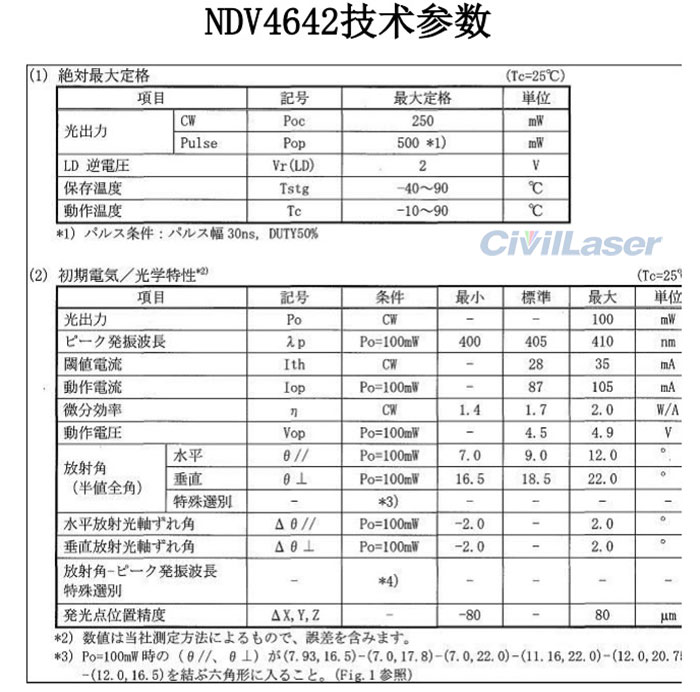

[명세서]
출력 파장:405nm
출력 파워:300mw
Reverse Voltage:2V
보관 온도:-40~90℃
Operating Case Temperature: -10~90℃
Initial Electrical/ Optical Characteristics(Tc=25℃):
Optical Output Power <100mW
Dominant Wavelength 400nm-410nm
Threshold Current <35mA
Operating Current <105mA
Operating Voltage 4.5V~4.9V
Beam Divergence Parallel -2.0º~2.0º
Beam Divergence Perpendicular -2.0º~2.0º
