OSRAM PL 450B LD 450nm 80mW Blue 레이저 다이오드 TO-18

OSRAM PL 450B LD 450nm 80mW Blue 레이저 다이오드 TO-18

[특징]
Optical output power (continuous wave):80mW(Tcase=25℃)
Typical emission wavelength:450nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth

[Application]
Laser Projection
Laser Shows
Metrology
Biomedical Applications

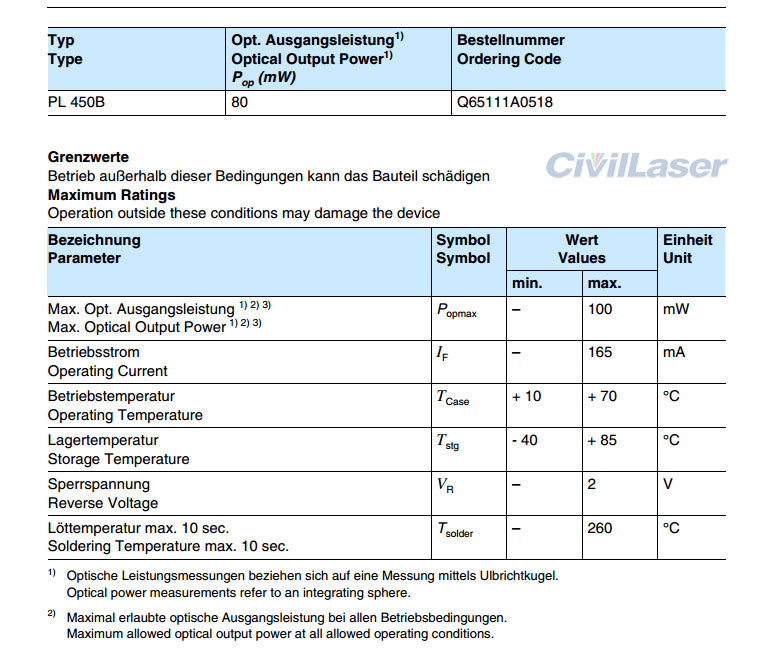

[명세서]
Type:PL450 B
출력 파장:450nm
출력 파워:80mW
Operating Current (Tm=25℃) : <165mA
보관 온도:-40~85℃
Operating Case Temperature: -40~70℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction  Temperature:120℃

Emission 파장:440nm-460nm
Spectral Width:2nm
Threshold Current: <40mA
Opreating Current:<145mA
작동 전압: <6.5V
Beam Divergence :4*18deg~7.5*25deg
Modulation Frequency:>100MHz
