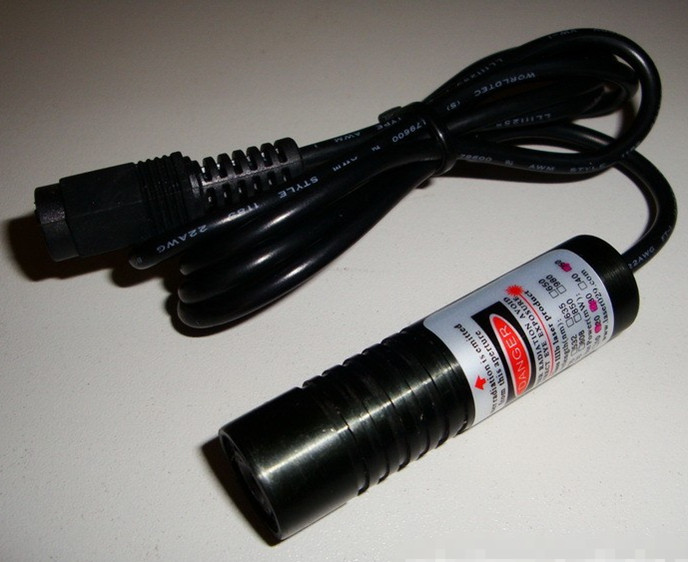

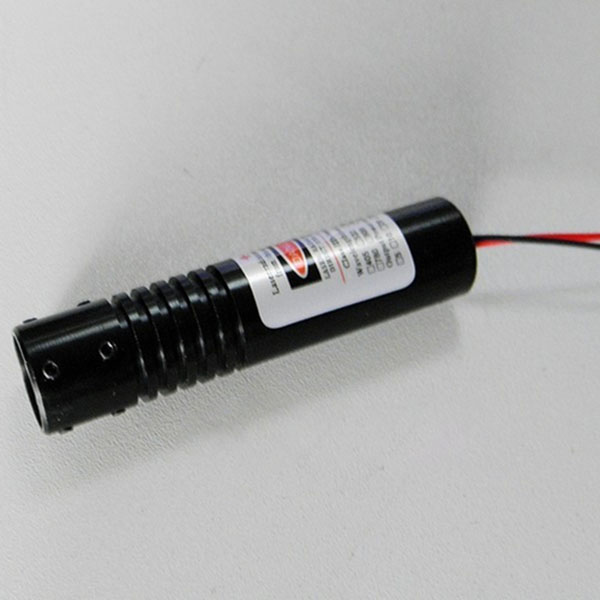

532nm 1mW~50mW 녹색 레이저 모듈 Line(Laser Head)

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:







Add to Cart:


In view of the special requirements of the products, the fan angle can be ordered 10 °, 30 °, 45 °, 60 °, 90 °, the light intensity distribution uniformity is good, can meet the high quality requirements. The larger the angle, the light is longer.

SPECIFICATIONS:
Wave length: 532nm
Exit pupil power: 1mW ~ 50mW (cylindrical, no refrigeration)
The fan angle: 10 °, 30 °, 45 °, 60 °, 90 °, 110 ° (Default 90 )
Beam Divergence: 1.5mrad
Line width: 0.5m the smallest width about 0.8mm; 1 meters the smallest width about 1mm, 2m the smallest width about 2mm, 10 m the smallest width about 10mm
Optical system: 3 pieces of spherical glass lens group
Bending degree: ≤ 1mm @ 5m
Working voltage: DC 3V ~ 3.7V
Laser level: IIIa IIIb
Working temperature: 10 ℃ ~ 35 ℃
Storage temperature: - 40 ℃ ~ 80 ℃
Dimensions: Φ 16mm x 75mm optional
Working time: Sustainable light normally 1-2 hours. (good heat dissipation conditions, such as iron / iron rack cooling tool.)

메모:  voltage can be 3-3.7V any voltage, 3V best;

Warning :
1. All of laser products are harmful for eyes,please don't aim people eyes(contain animal eyes) directly.
2. It is Industrial laser ,not toy .Keep far from Children under 18years old.
