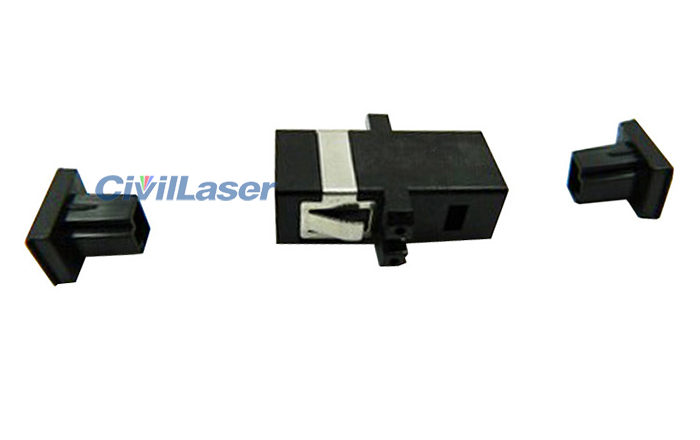

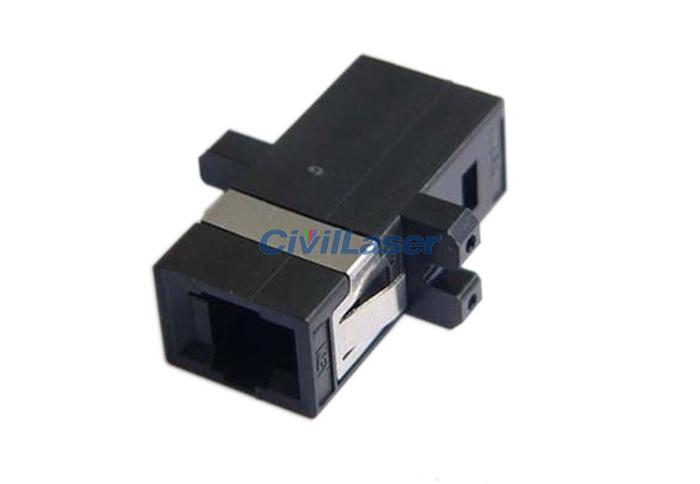

MT-RJ Fiber Optic Adapter Low Insertion Loss Plastic Flange

MTRJ Fiber Optic Adapter Low Insertion Loss Plastic Flange

Fiber optic adapter also called flange plate.Mainly used for connection between the optical connectors and fixed,so that the optical signal can be transmitted with small insertion loss.Unlike SC fiber adapters which use ceramic sleeve for precision alignment,MT-RJ fiber optic adapter make use of the pin and pin hole, which come with diameter of 0.7mm and are located on the end surface of connector ferrules, to ensure precision mating between fiber optic connectors. Due to this, MT-RJ fiber optic cable adapter is compatible with both single mode and multi-mode fiber connectors.

[특징]
1. Good interchangeability and repeatability
2. Low insertion loss
3. High reliability

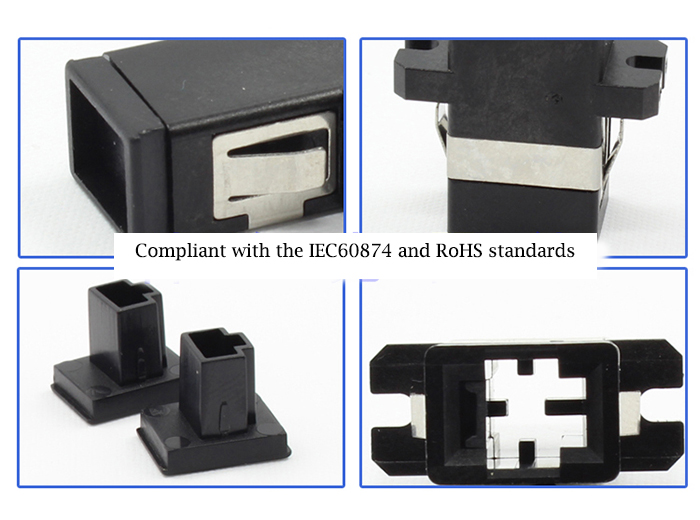

4. Compliant with the IEC60874 and RoHS standards

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

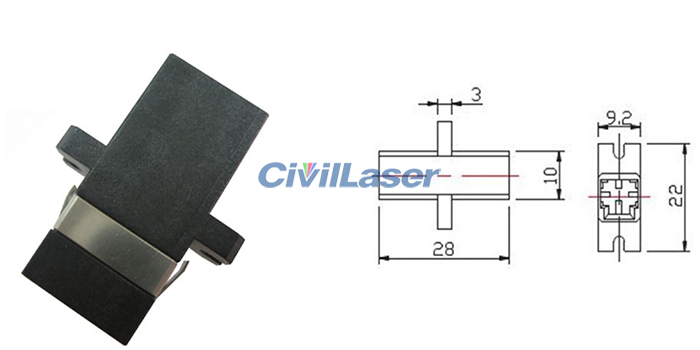

Specifications
