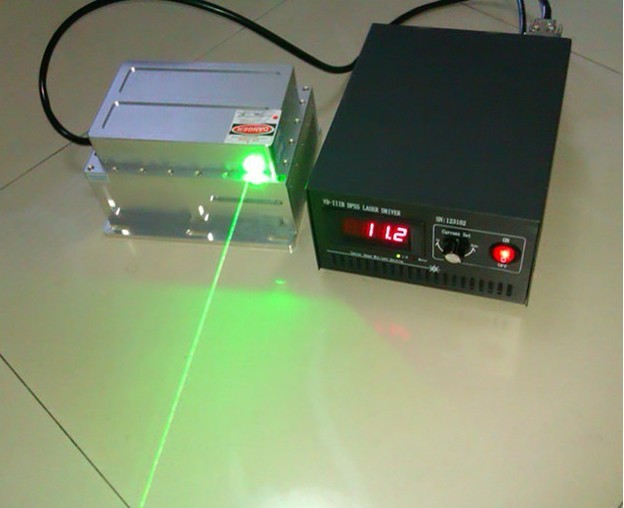

532nm 5W 그린레이저 모듈 A자동 냉각 고출력 그린 DPSS 레이저 전원 공급 장치

$6,999.00

Add to Cart:


532nm 5W 그린레이저 모듈 A자동 냉각 고출력 그린 DPSS 레이저 전원 공급 장치

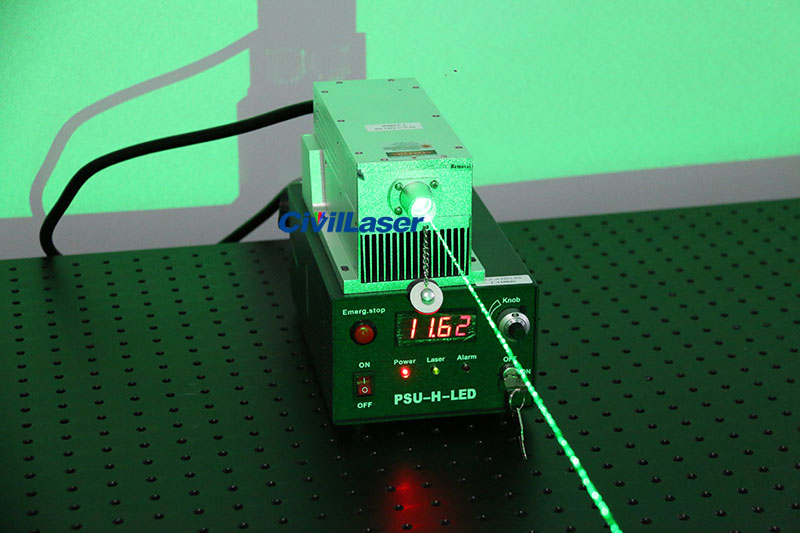

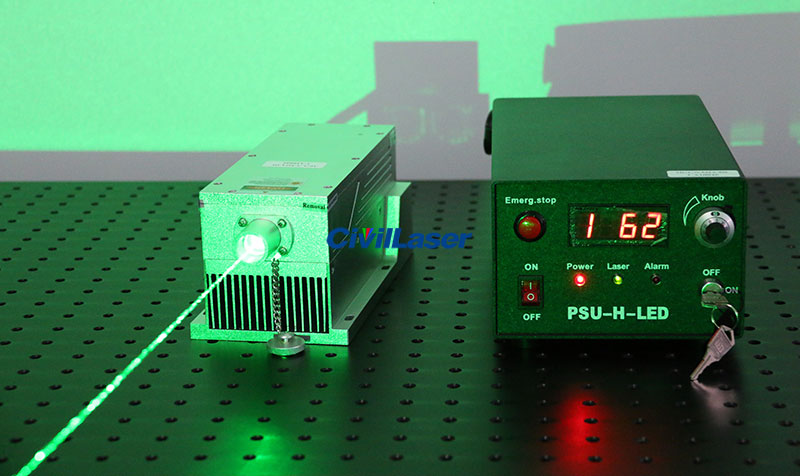

T532D5W green laser show:
The imported laser diode pump source, T532D5W DPSS green laser are made of high quality high quality nonlinear crystal and collimating lens, with temperature control of high performance driving power, the active temperature control, with high efficiency, good stability, good beam quality, low noise, strong anti-jamming, good consistency, compact structure, miniaturization, long life and so on.
Products are widely used in medicine, laser show, isotope separation, ultra-high density optical storage, precision materials processing, lithography, spectrum analysis etc..



[상품상세정보]

모델: T532D5W
파장: 532nm
작동 모드:  CW
출력:  >5W
공간적 모드:   Near TEM00
Longitudinal mode:  Multi
Spectral linewidth:  0.1nm
Coherence length:  20cm
양극화:  Linear vertical
Polarization ratio:  >100:1

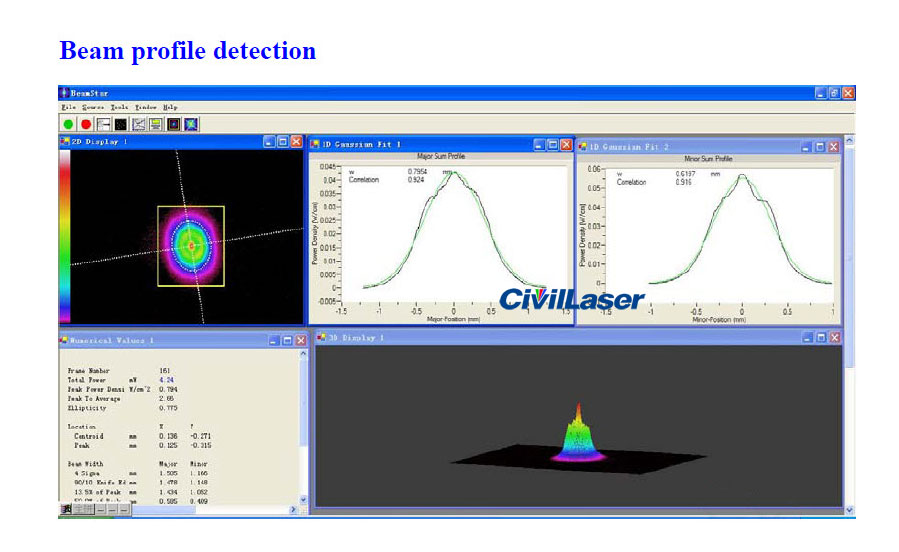

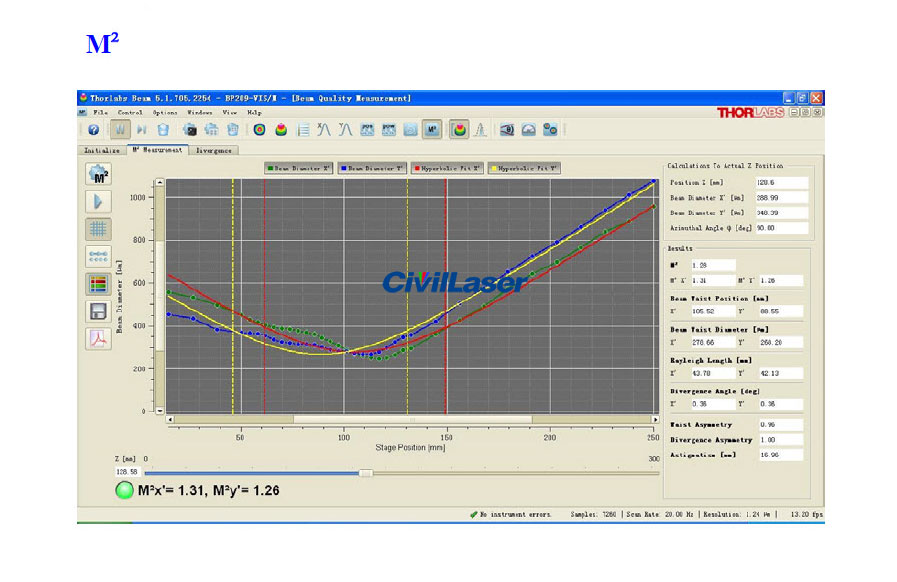

빔 품질:   M2<3
Beam divergence full angle:   1.8mrad

Beam diameter at aperture:  3mm
Beam ellipticity:   1±0.1
Beam 포인팅 안정성:  0.03mrad
Noise:   <20% 10Hz-50MHz

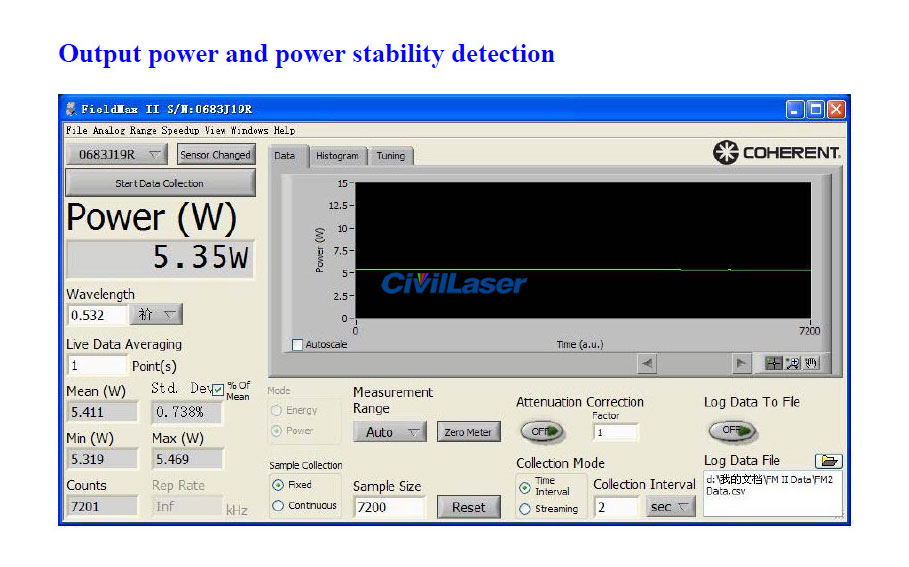

전력 안정성:       ±3, 5% over 8 hrs rms
Optical axis height:   68.2mm

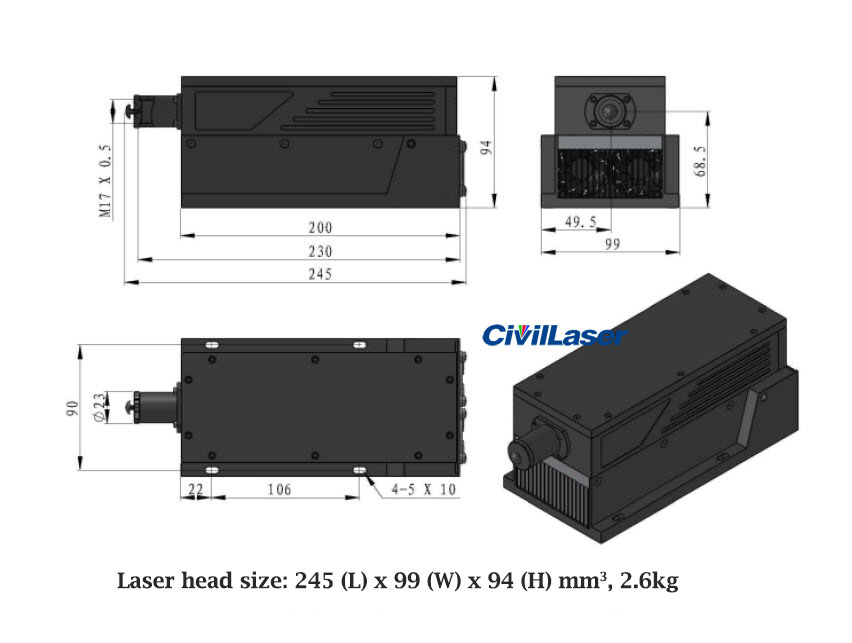

Size of laser head:    LxWxH=235x99x94mm

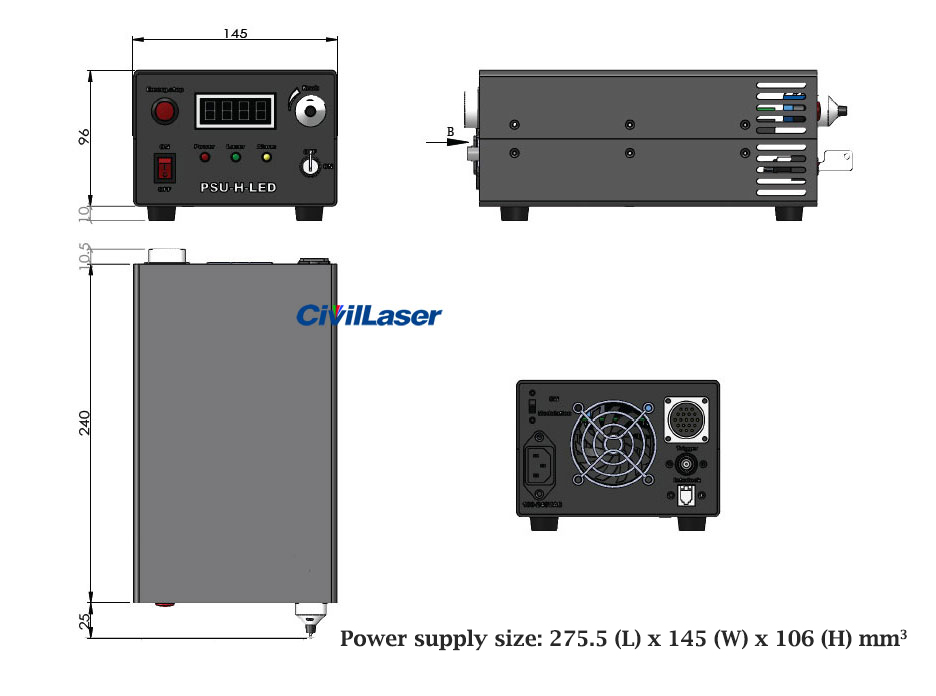

Size of 전력 공급:  LxWxH=238x146x102mm
Cabel-laser head:      1.0, 1.5m
Weight of laser head:  2.6kg
Weight of 전력 공급:  2.3kg
TTL 변조: 0V-no lasing, 5V-lasing
Frequency of TTL:  1kHz-20kHz
Efficiency of TTL:  40%-60%
Analogue 변조:  0-5V
Frequency of analogue:  1kHz-10kHz
Cooling mode:      TEC
Operating votage:     90-260VAC
Maximum power consumption:  50W
예열시간:   15 mintues
작동 온도:  10-35℃
보관 온도:   -20-60℃(<90% relative humidity, non-condensing)
Expected life time:  10,000 hours
Warranty time:  1 year
