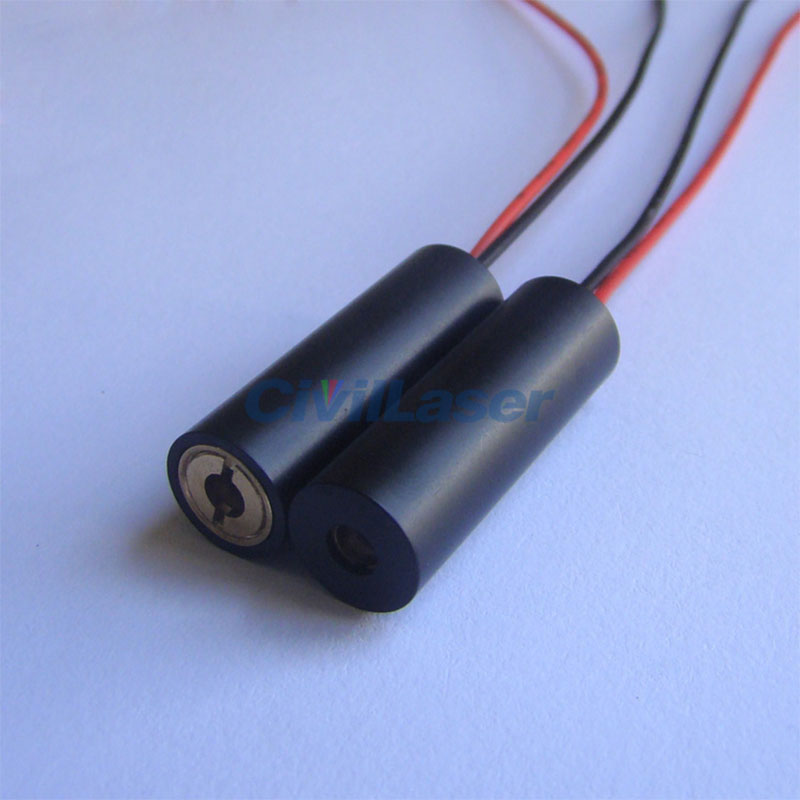

405nm 5mw~200mw Blue violet Dot laser module high-quality Dot positioning lamp

405nm 5mw~200mw Blue violet Dot laser module high-quality Dot positioning lamp

SPECIFICATIONS:
이름:  405nm 5mw~200mw Blue violet Dot laser module
출력 파장: 405nm ±5nm
출력 파워: 5mw, 10mw, 60mw, 120mw, 200mw(선택하다)
Class level: Class III
레이저 모양: Dot
Range: 500~5000 meters
재료: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Blue violet laser
Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ10mm at 10m distance, focus adjustable
Circuit control: APC
크기: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
작동 전압:  DC=5.5-7.0V
Operating current: I<150mA
작동 온도: 0°C~+70°C
보관 온도: -40°C~+80°C
Tail wire: 26# 빨간색 and black line, about 150mm long, power supply can be choose
보증:12 Months Factory warranty
