Lab Adjustable power supply for DPSS laser
[Model#1 -- Specifications]
상품명: Lab Adjustable power supply for DPSS laser
Output Current: 0~3.0 A
Output Voltage: 5.0v
Repetition Rate: DC~30khz 0~5V Analog /TTL
Input Voltage: 85~265VAC, 50/60Hz
크기: 170(L)x150(W)x56(H)mm3
Weight: 800g
[Model#2 -- Specifications]
LD drive current: 0~8.0 A
External 조정: DC~30khz 0~5V Analog /TTL
Drive Current: 6.0 A
Drive voltage: 5.0V
Temperature control mode: <0.1℃
Temperature control range: 5~40℃
작동 온도: 0~50℃
Input Voltage: 90~264VAC, 50/60Hz
Weight: 1500g
크기: 178(W)x197(D)x84(H) mm3

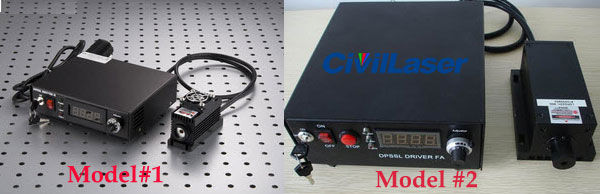

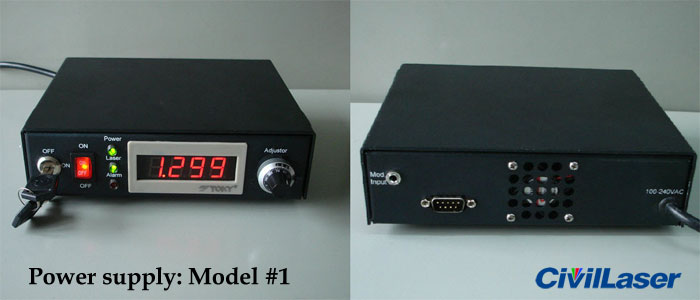

Power supply: Model #1

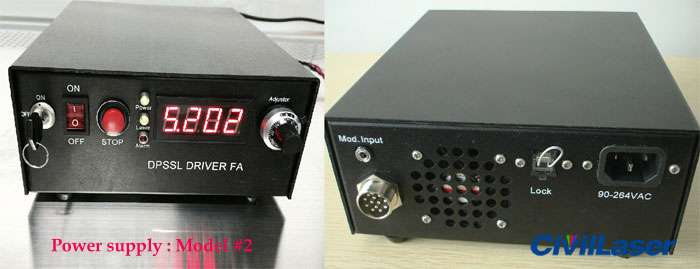

Power supply: Model #2
Different style of the laser outer shell,use different power supply
[Warranty]
1. 3 months warranty from the date of delivery.
2. We accept return & refund within 7 days after delivery for quality problem.
[Applications]
1. 고출력 레이저 Diode Bars, Arrays, Stacks
2. 고성능 DPSS 레이저s
3. Industry Laser Power Supply
4. Lab Research Applications.
[Buyer Notice]
1. Buyers must be 18 years old and must have enough experience of using high power laser diodes.
2. Improper operation may cause damage to the laser diodes, especially for the over current operation. Seller doesn't take responsibility for these damage or loss.
Lab Adjustable power supply -- Overall power supply Click here find detail info.
