650nm 50mw 빨간색 Crosshair laser module Ultra-fine/Adjustable linewidth Vertical 90 degrees
SPECIFICATIONS:
이름: 650nm 50mw 빨간색 Crosshair laser module Ultra-fine/Adjustable linewidth Vertical 90 degrees
출력 파장: 650nm
출력 파워: ≤50mw,100mw
레이저 모양: Crosshair
Laser type: 빨간색 laser
Outside Color: Black
크기: 16*70mm(default), 22*110mm
Current: ≤120mA
작동 전압: DC2.8-5.2V
작동 온도: -20℃~60℃
보관 온도: -40℃~80℃
Line Length: 1.2m (can be customized)
보증:12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway

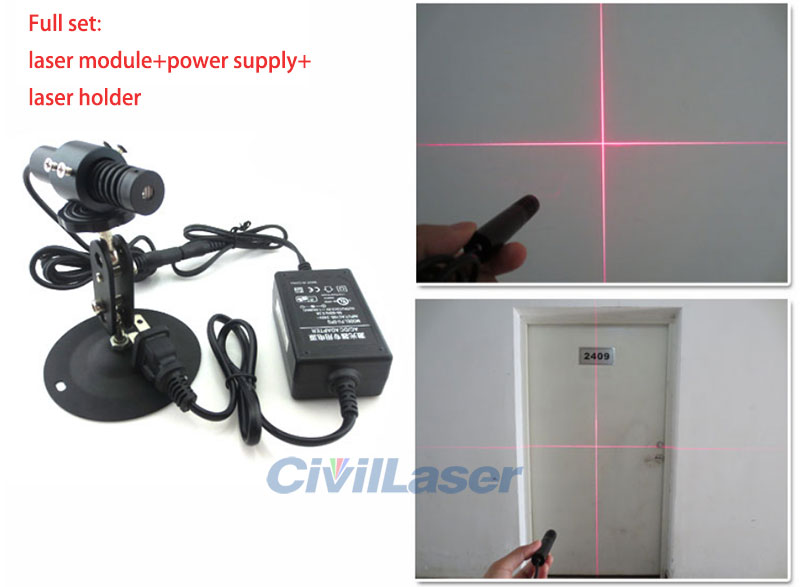

Package includes:
1* 빨간색 laser module;
1* Laser mount;
1* Adjustable Power supply;
The advantages of this laser module as below:
1, The line width is adjustable from 0.4mm to several centimeters;
2, Lens angle from 5 degrees to 120 degrees optional;
3, 650nm wavelength laser is pure red, the light is clear and bright and soft without glare;
4, High quality Taiwan lens, can continously work for more than 24 hours;
5, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
6,Tail power line using high temperature line, good toughness and corrosion resistance.
