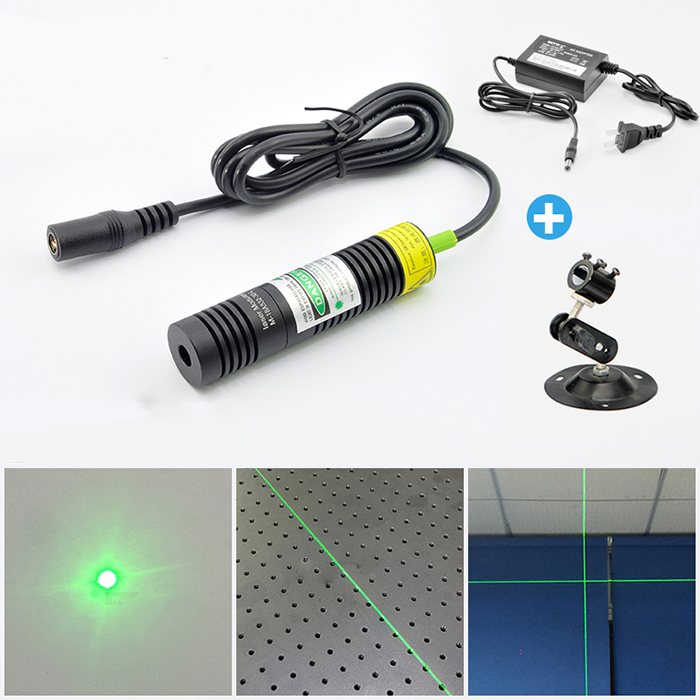

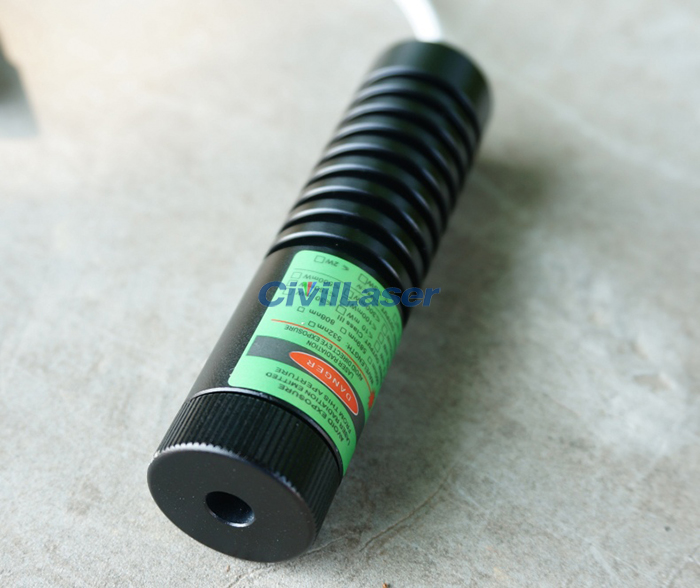

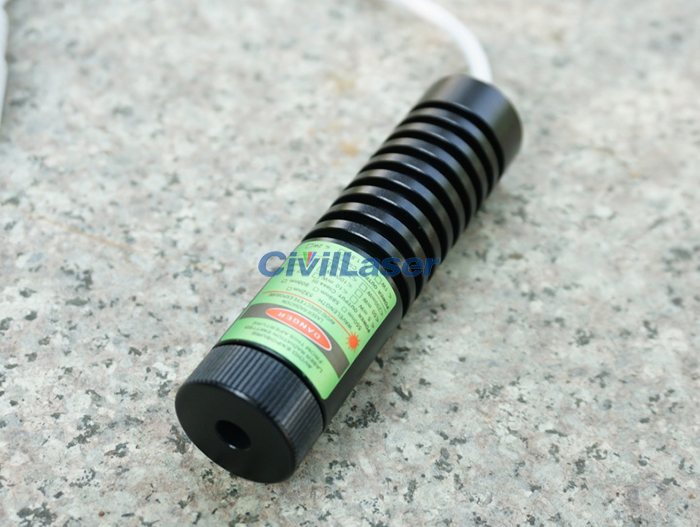

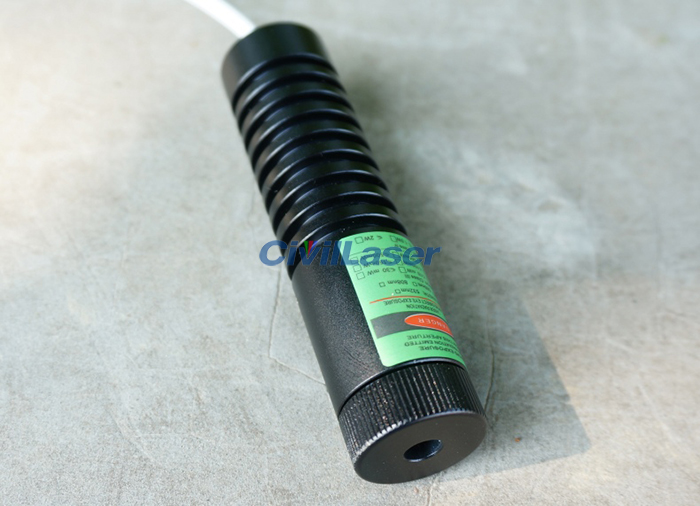

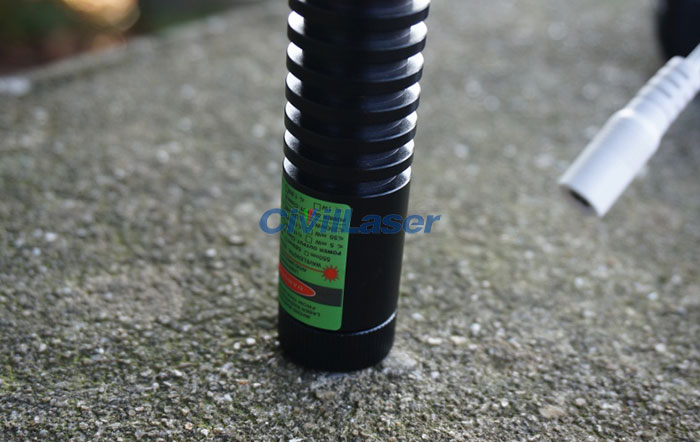

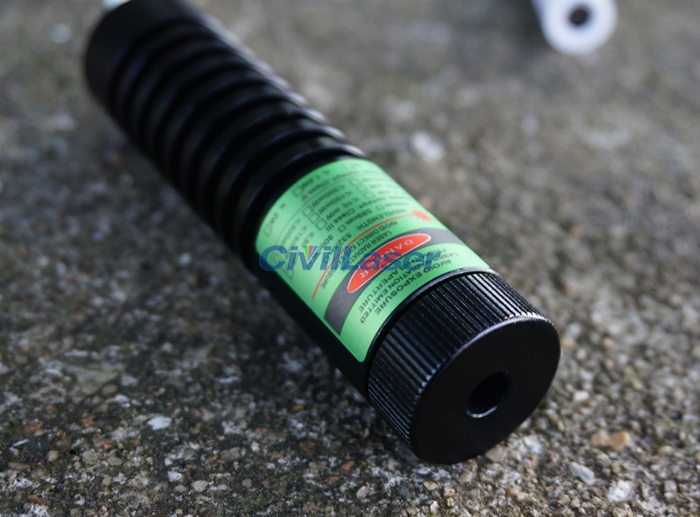

505nm 50mW 녹색 Dot 레이저 모듈 With Adjustable Focus Design 5V DC Power Supply

505nm 50mW 녹색 Dot 레이저 모듈 With Adjustable Focus Design 5V DC Power Supply

This dot module uses OSRAM semiconductor laser diode, the range is more than 3 kilometers.

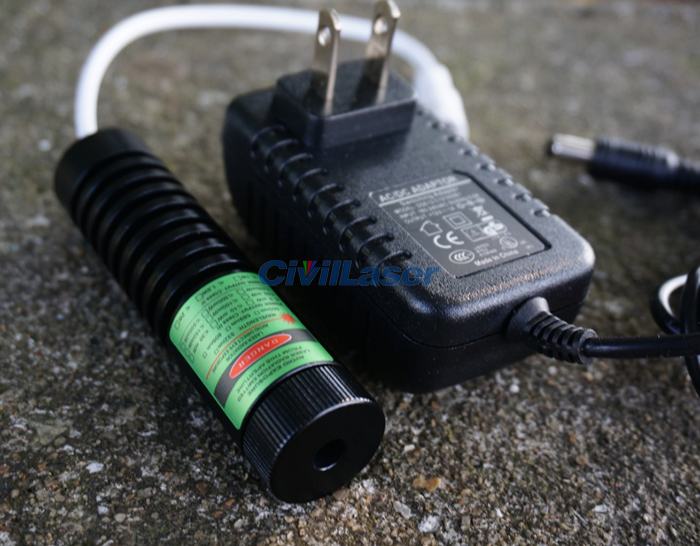

Using 5V adapter power supply, can be directly inserted into the 220V socket power supply.

[특징]
1.  Without preheating, power saving, small fever, can work for a long time.
2.  Using 5V voltage input power.
3.  With adjustable focus design, according to the need to adjust the spot size.

SPECIFICATIONS:
이름:  505nm 50mW Dot 레이저 모듈
파장: 505nm±10nm
Output power: 50mW
레이저 모양: Dot
Light Output Angle:  <1.5 mard
Surface Treatment:  Anode black
Shell 재료: Aviation aluminum
Circuit Control:  Buck Constant Current
Reverse Protection:  Yes
작동 전압:  DC=5V
Operating current:  I<100mA
Warm-up time:  0
Working Temperature:  0 ℃ ~ +60 ℃
보관 온도:  -40 ℃ ~ +85 ℃
Structure: laser tube + lens + heat dissipation shell
크기: 20*58mm
