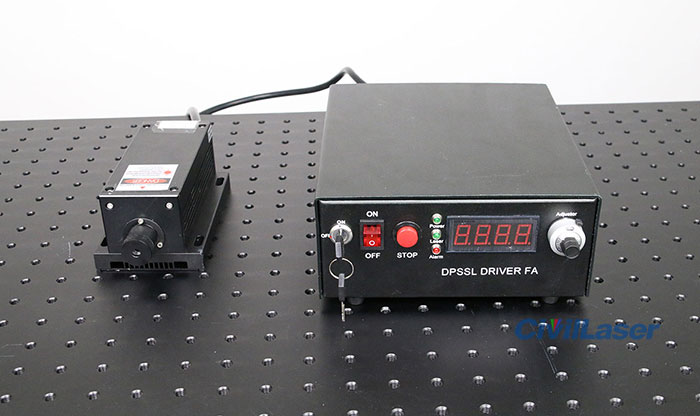

1064nm IR Passively Q-Switched Pulsed Laser 고체 레이저 조정 가능한 전원 공급 장치

[특징]
1. Passively Q-switched
2. Adjustable repetition frequency

[Specification]

Model Model#01-1064HQ Model#02-1064HXQ Model#03-1064HYQ
Wavelength 1064nm 1064nm 1064nm
Spatial Mode TEM00 TEM00 TEM00
Average Output Power default near 200mw default near 500mW default near 1000mW
Single Pulse Energy default near 20uJ  (10~50uJ customizable) default near 50uJ (1~200uJ customizable) default near 80uJ (1~100uJ customizable)
Pulse Width default near 15ns (5~50ns customizable) default near 20ns (5~50ns customizable) default near 20ns (10~30ns customizable)
Peak Power 500W~10KW 1KW~10KW 500W~5KW
Repeat Rate default near 10KHz (1Hz~50KHz customizable ) default near 10KHz (10Hz~50KHz customizable) default near 12KHz (10Hz~30KHz customizable)
Modulation Signal 0~50KHz 0~50KHz 0Hz~30KHz
Beam Spot Shape Circular, aspect ratio<1.1:1 Circular, aspect ratio<1.1:1 Circular, aspect ratio<1.1:1
Pointing Stability <0.05 mrad <0.05 mrad <0.05 mrad
빔 직경(1/e2) <1.5 mm <1.5 mm <1.5 mm
Beam Divergence <1.5 mrad <1.5 mrad <1.5 mrad
Power Stability <±3% per 2 hrs <±3% per 2 hrs <±3% per 2 hrs
Beam Height 29mm 39mm 29mm
Temperature Stabilizing TEC TEC TEC
Warm Up Time <5 minutes <5 minutes <5 minutes
Beam Quality(M2) <2 <2 <2
Optimum Operating Temperature 20~30℃ 20~30℃ 20~30℃
Storage Temperature 10~50℃ 10~50℃ 10~50℃
MTTF 10,000 hrs 10,000 hrs 10,000 hrs

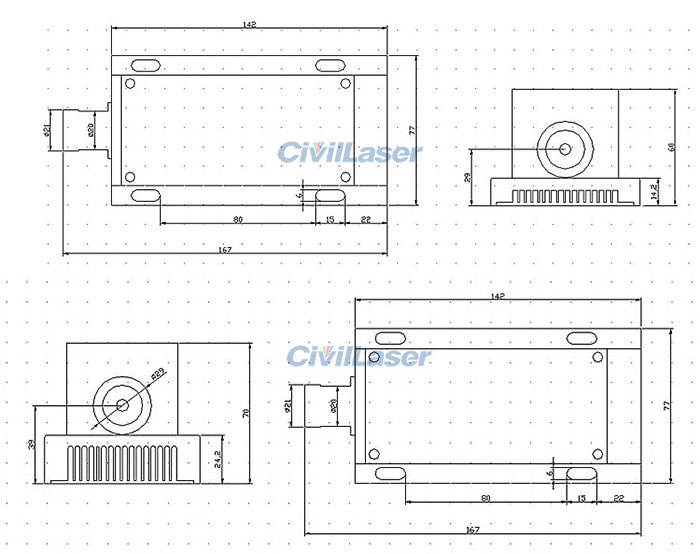

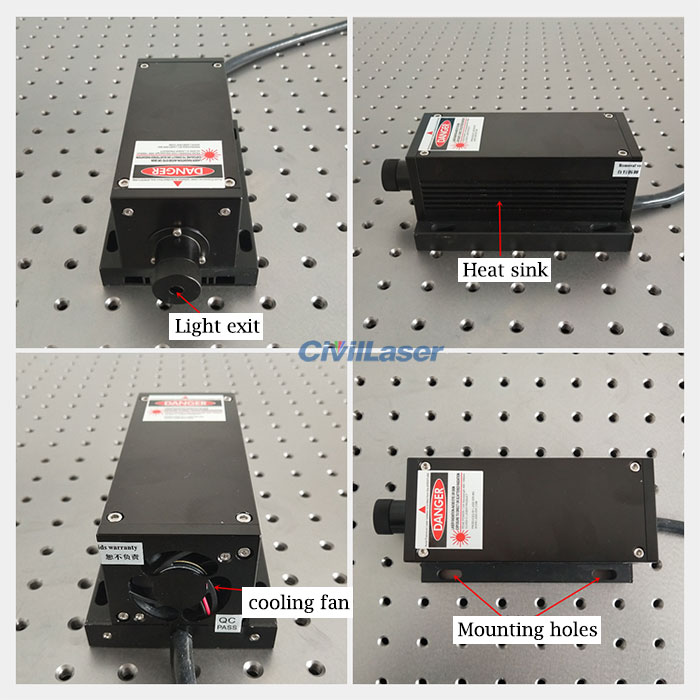

Laser Head Size 155(L)x77(W)x60(H)mm3 167(L)x77(W)x70(H)mm3 155(L)x77(W)x60(H)mm3

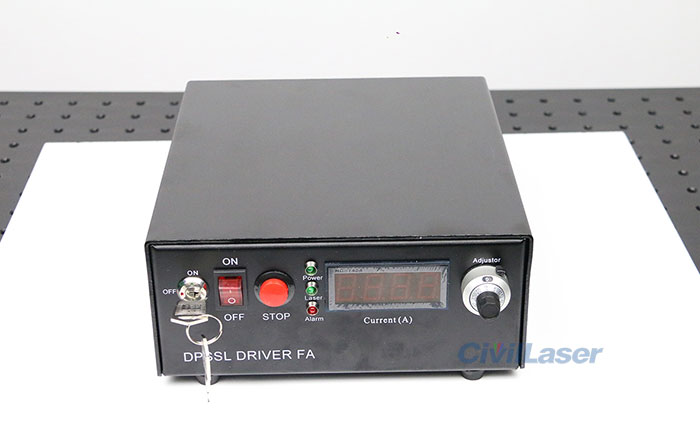

Power Supply 178(W)x197(D)x84(H) mm3 178(W)x197(D)x84(H) mm3 178(W)x197(D)x84(H) mm3
Note The average power of this model Q-switched laser is about 200mw. The two parameters of single pulse energy and repetition frequency affect each other. The average power of this model Q-switched laser is about 500mw. The two parameters of single pulse energy and repetition frequency affect each other. The average power of this model Q-switched laser is about 1000mw. The two parameters of single pulse energy and repetition frequency affect each other.






[Main parameters explanation]
(1) Repeat rate
The max repeat rate is fixed.

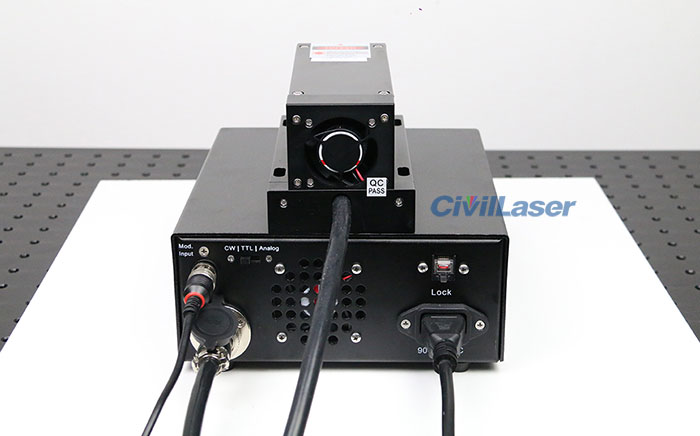

1 ~ max repeat rate can be adjusted by Exteranl input signal.

(2) Single pluse energy
It can be customized according to your needs.
It is a fixed value after production is completed.

(3) Pulse width
It can be customized according to your needs.
It is a fixed value after production is completed.

(4)Average output power
Average output power = [Repeat rate]*[Single pulse energy]

e.g.
Repeat Rate: 1~10KHz
Single Pulse Energy: near 20uJ
Average output power = [Repeat rate]*[Single pulse energy] = 10*1000*20 = 200000uJ (200mW)

(5)Peak Power
Peak Power = [Single pulse energy]/[Pulse Width]

e.g.
Pulse Width: near 15ns
Single Pulse Energy: near 20uJ
Peak Power = [Single pulse energy]/[Pulse Width] = 20uJ/15ns = 20*10^(-6) / 15 * 10^(-9) = 20 / (15*0.001) = 1333W






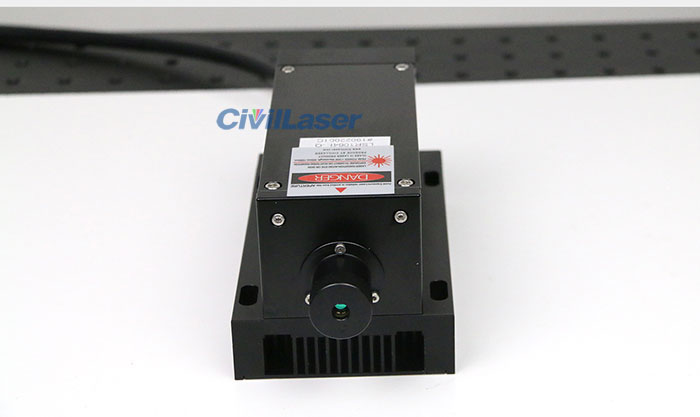

1064nm Q-switched laser

1064nm Q-switched laser

1064nm Q-switched laser

1064nm Q-switched laser

1064nm Q-switched laser

1064nm Q-switched laser
