780nm 10mW~30mw 단일 모드 섬유 결합 레이저 FC Interface IR 레이저 소스

780nm 10mW~30mW 단일 모드 섬유 결합 레이저 FC Interface IR 레이저 소스

Because of its flexible characteristics, the optical fiber can make the laser light emitting end move flexibly and freely, making the use of the laser more convenient.
The laser beam can be shaped so that the mode of the beam is better and the Gauss distribution is distributed.
It is also possible to integrate several laser beams to increase the power of the laser.

[Applications]
1. Industrial Marker
2. Equipment and equipment
3. Teaching experiment light source
4. Laser medical instrument
5. Stage lighting
6. Demonstration with a laser light source.

[명세서]
파장: 780nm
출력 파워: 10mW / 20mW/30mW (Optional)
Dispersion Angle: 0.6mrad
Optical System: Optically coated glass
Lens: High quality aspherical plastic lens
섬유 코어 직경: single mode 4.5um
Pigtail Diameter:e: 125um
Fiber diameter: 0.9mm
Injection Numerical Aperture: 0.12
Spot 크기: Min.Φ0.5mm (Adjustable)
섬유 길이: 1m
Fiber 재료: Quartz Material
작동 전압: DC 3V or 5V (Optional)
Working Temperature: -10°C～50°C
보관 온도: -40°C～80°C
Dimensions: Φ16mm×60mm

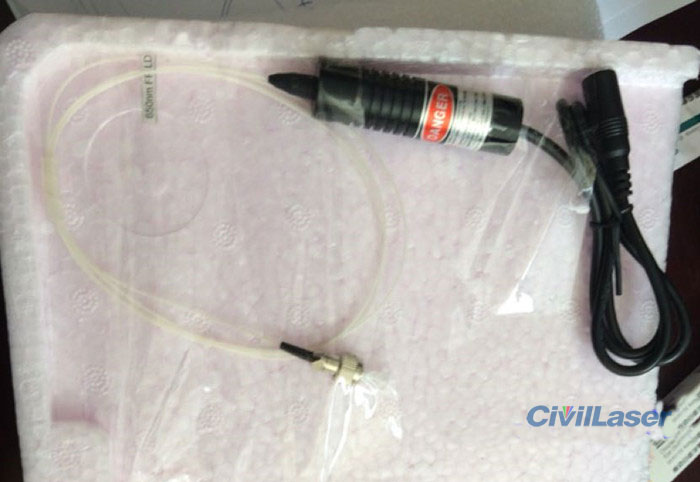

Include: 광섬유 결합 레이저 + Power supply
