ML725B16F 미쓰비시 FP 레이저 다이오드 Mitsubishi 1310nm 5mW 6mW 2.5Gbps InGaAsP DFB 레이저 다이오드

$8.00

Add to Cart:
Min:  10

ML725B16F 미쓰비시 FP 레이저 다이오드 Mitsubishi 1310nm 5mW 6mW 2.5Gbps InGaAsP DFB 레이저 다이오드
ML725B16F FP Laser Diode Mitsubishi 1310nm 5mW 6mW 2.5Gbps InGaAsP DFB Laser Diode

ML7xx16 series are uncooled DFB (Distributed Feedback) laser diodes for 2.5Gbps transmission emitting light beam at 1310nm. λ/4 shifted grating structure is employed to obtain excellent SMSR performance under 2.5Gbps modulation. Furthermore, ML7xx16 can operate in the wide temperature range form -20ºC to 85ºC without any temperature control.

[Features]
1. λ/4 phase shifted grating structure
2. Wide temperature range operation (-20ºC to 85ºC )
3. High side-mode-suppression-ratio (typical 45dB)
4. High resonance frequency (typical 11GHz)

[Applications]
1. 2.5Gbps transmission

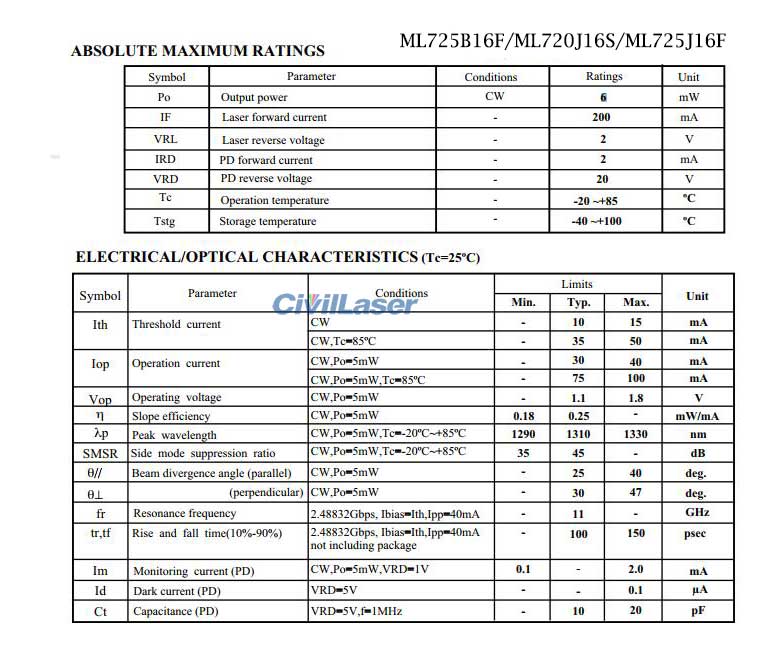

[Specifications]
브랜드: Mitsubishi
모델: ML725B16F
Wavelength: 1310nm
출력: CW 6mW
Laser Forward Current: 200mA
Laser 역 전압: 2V
PD Forward Current: 2mA
PD 역 전압: 20V
Operation Temperature: -20 ~ +85ºC
보관온도: -40 ~ +100ºC

Notes:
This is ML725B16F laser diode, we have ML720J16S,ML725J16F and other model laser diodes, if you need other DFB laser diode, please contact us.

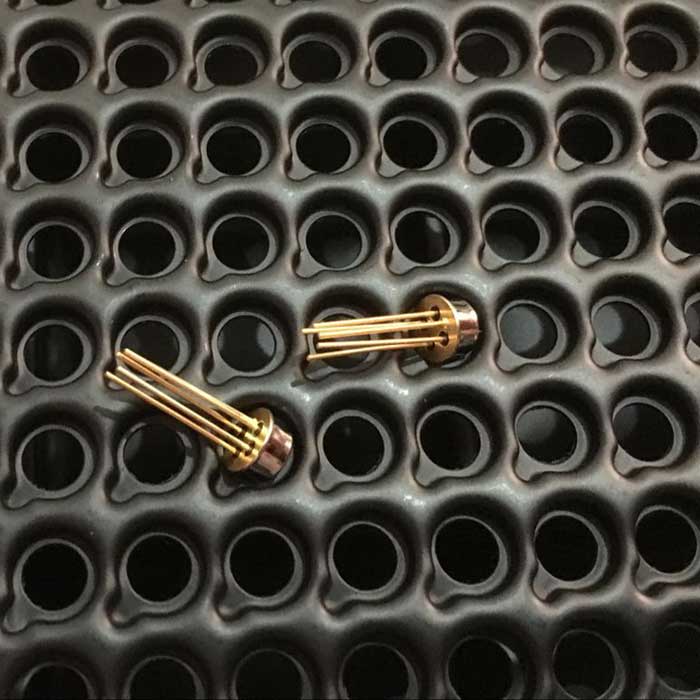

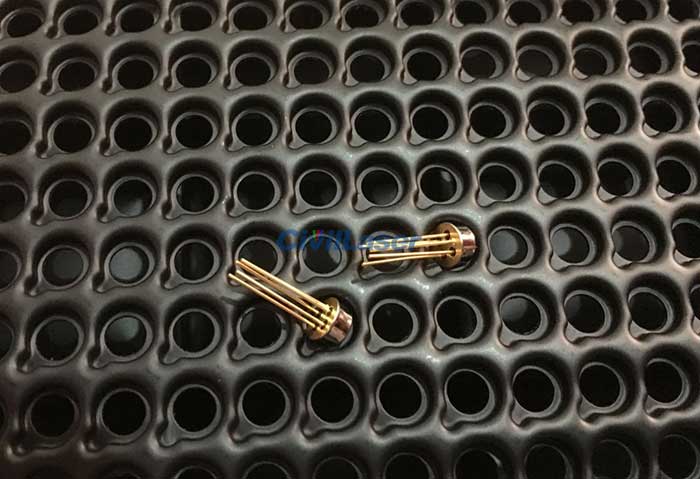

ML725B16F DFB laser diode

ML725B16F DFB laser diode

ML725B16F DFB laser diode

ML725B16F DFB laser diode
