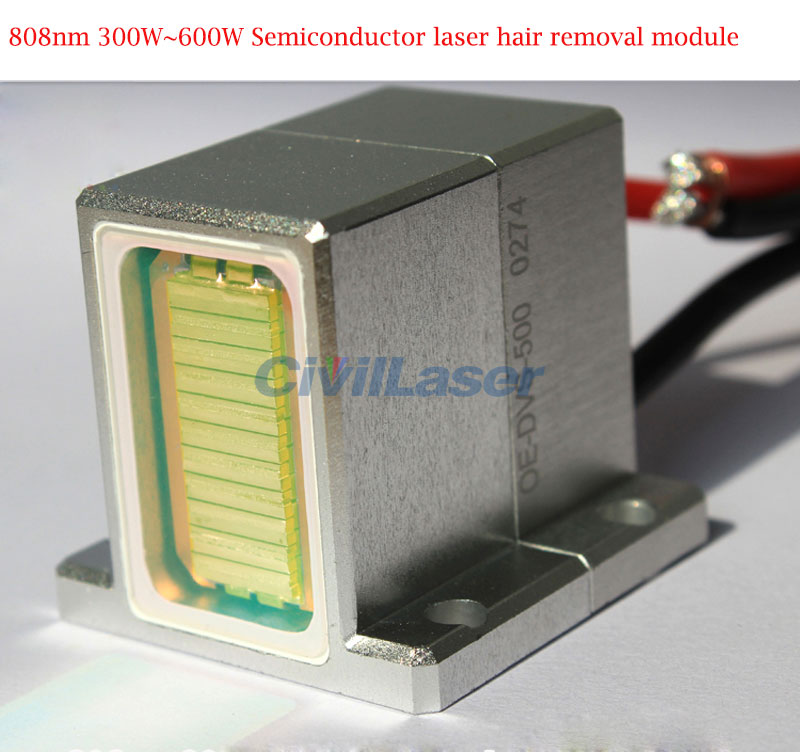

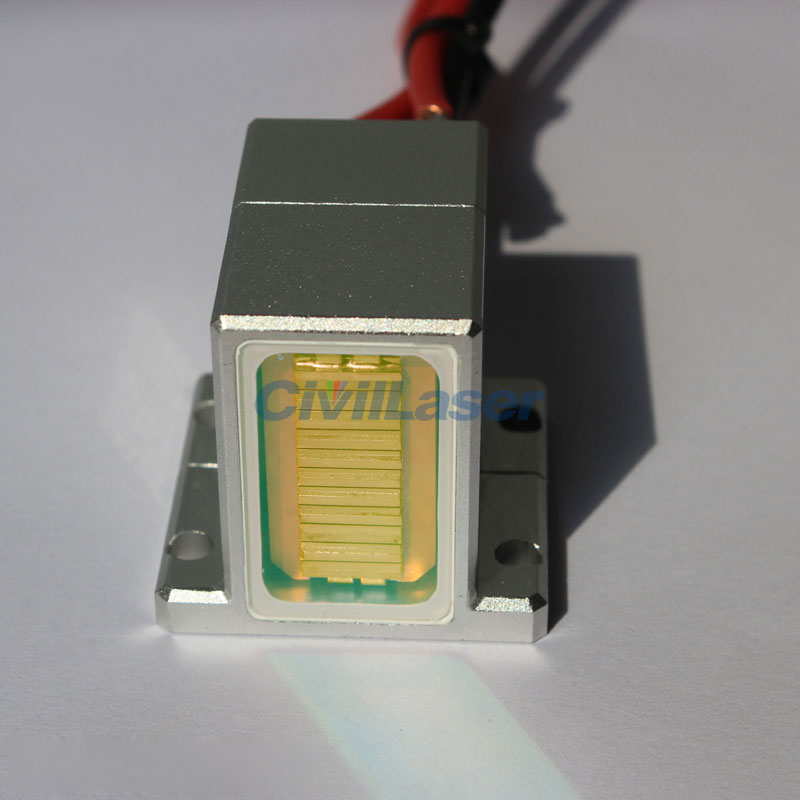

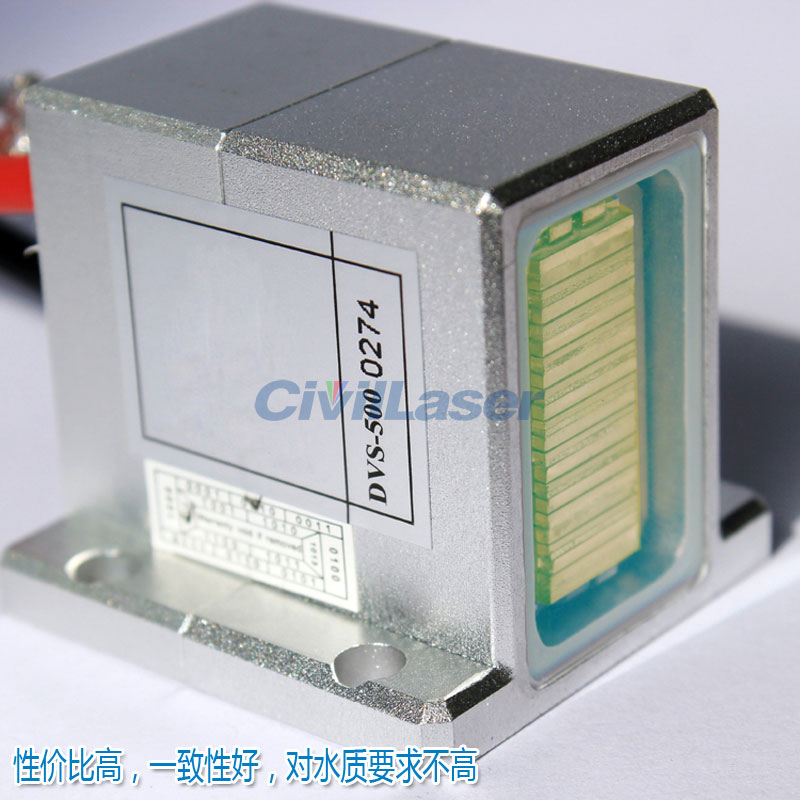

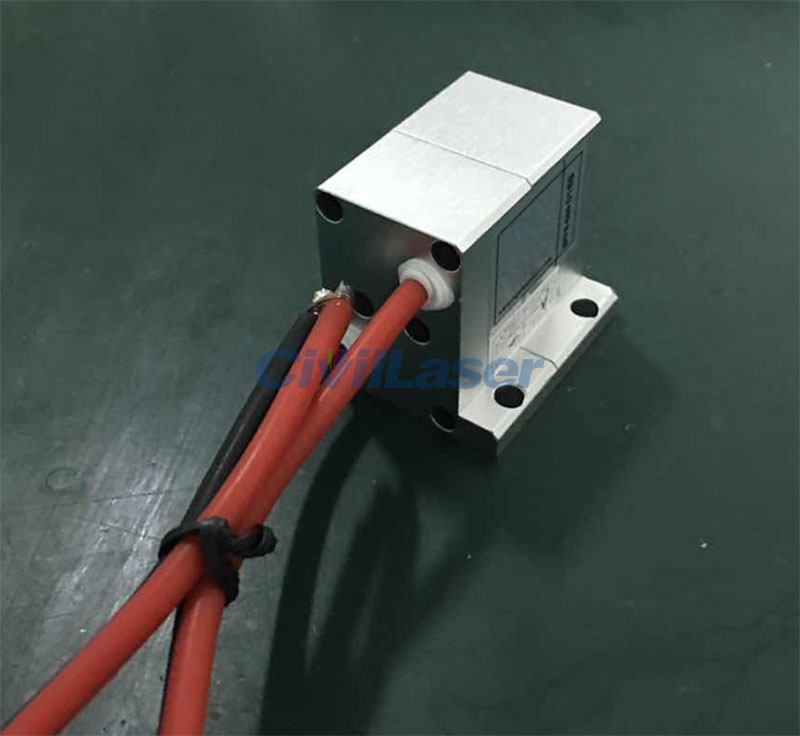

808nm 300W~600W 반도체 레이저 hair removal module Near infrared laser module

808nm 300W~600W 반도체 레이저 hair removal module Near infrared laser module Power customizable

[명세서]
파장: 808±10nm
출력 파워: 300W(6bar)/500W(10bar)/600W(12bar)
Max working current: 45A
Max working voltage: 2.0V/Bar
Repetition frequency: 1～10Hz
Maximum duty cycle: 40%
Maximum pulse width: 400ms
Light spot size: 10×12mm(300W)/500W(10×20mm)/600W( 10×24mm)
Working temperature: 15～35℃

[Product features]
1. Full sealed nitrogen treatment has strong environmental adaptability and high stability.
2, rectangular symmetrical spot output, high energy density, easy to reshape;
3. Window coating with antireflection coating to reduce power loss.
4, macro channel heat dissipation structure, water cooling is simple.
5, integrated design of drive plate, high power output stability.

Cautions for the use of lasers:
1. The ideal temperature of cooling water is less than 30 degrees. It is suggested that the temperature of the laser should be controlled at room temperature of ±5℃ at room temperature to avoid condensation;
2. Actual flow of water through laser is ≥3L／min;
3. Please use it in a dry environment;

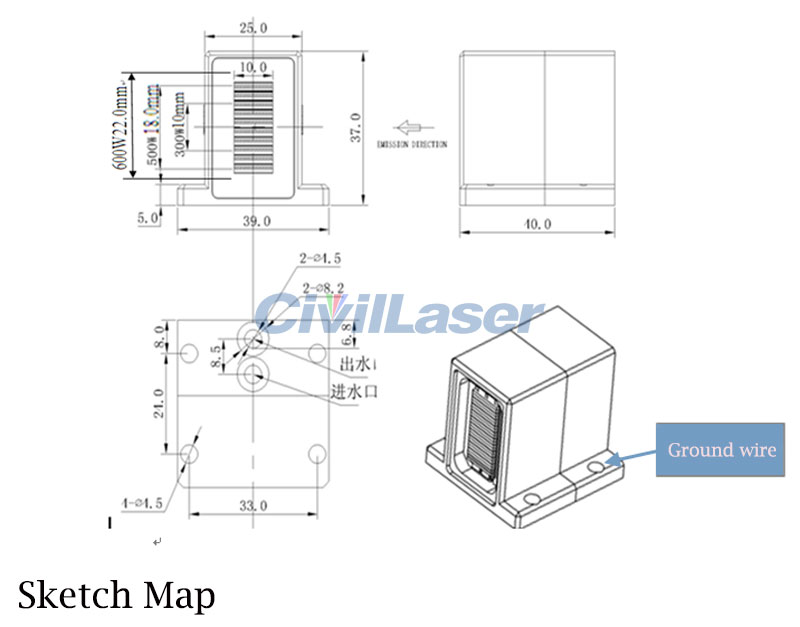

4, In order to fully dissipate heat, please select the standard washer to ensure that the inlet and outlet (see the structure size chart) and the external water cooling pipe are properly installed, Avoid ineffective water resistance due to too small size, if the size is too large and the pipe is leaking easily, and the life of the laser is affected;
5, In order to ensure the long-term work of this product, please use deionized water for circulation cooling, if there is a filter system, please replace the filter core regularly (according to the water quality), if no filtration is recommended for two weeks to replace the deionized water;
6. The external wire of the laser is ≥4mm2;
7, if the customer needs the ground wire, it can connect itself to the four screws on the module base.
8, the terminal uses the customer to clean the filter network for 2 months. The filter network suggests that the diameter of the particle is 5-20 micron standard. The water quality is used as deionized water, and the customer is advised to clean the filter screen.
