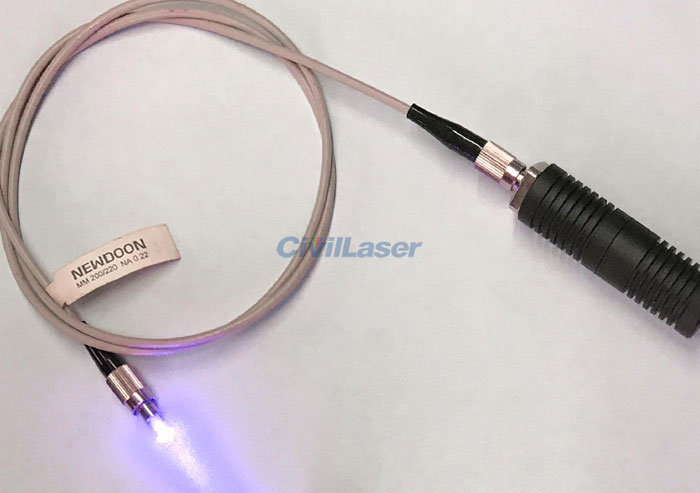

405nm 300mW Blue 섬유 결합 레이저 피그테일 레이저 다이오드 Module
[명세서]
상품명: 405nm pigtailed laser
파장: 405±6nm
출력 파워: <300mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
섬유 코어 직경: 200μm
섬유 길이: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (선택하다)
Fiber 재료: Quartz
Coupling Lens 재료: Optical glass
작동 전압: DC 4.5V
Operating Voltage With Power Diver: DC 6V
작동 전류: <400mA
Circuit Control Mode: ACC / TTL frequency modulation (선택하다)
작동 온도: -0~50℃
보관 온도: -40~85℃
크기: Φ20*70mm
Note:Can customize 40mw single mode fiber laser, if you need 40mw single mode fiber laser, please leave a comment when you place the order.
