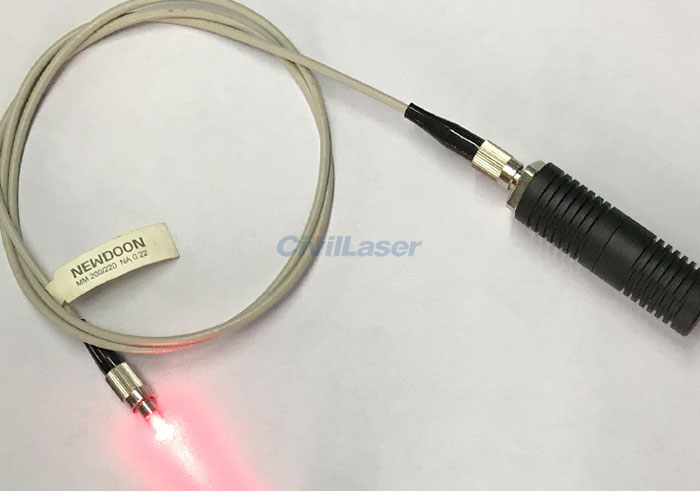

638nm 100mW 빨간색 섬유 결합 레이저 피그테일 레이저 전원 공급 장치 포함
[명세서]
상품명: 638nm pigtailed laser
파장: 638±10nm
출력 파워: <100mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
섬유 코어 직경: 200μm
섬유 길이: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (선택하다)
Fiber 재료: Quartz
Coupling Lens 재료: Optical glass
작동 전압: DC 2.4V
Operating Voltage With Power Driver: DC 3-5V
작동 전류: <200mA
Circuit Control Mode: ACC / TTL frequency modulation (선택하다)
작동 온도: -10~60℃
보관 온도: -40~85℃
크기: Φ20*70mm
NOTE: We can make single mode fiber coupled laser for 638nm, the maximum output power is about 15MW. Leave a comment if you need single mode fiber coupled laser module.
